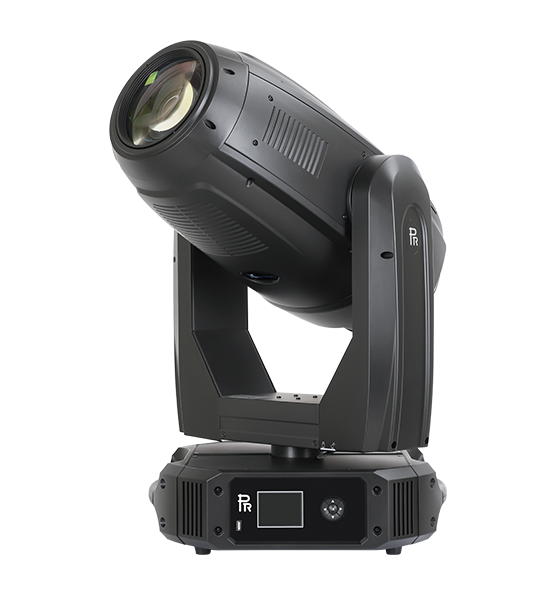

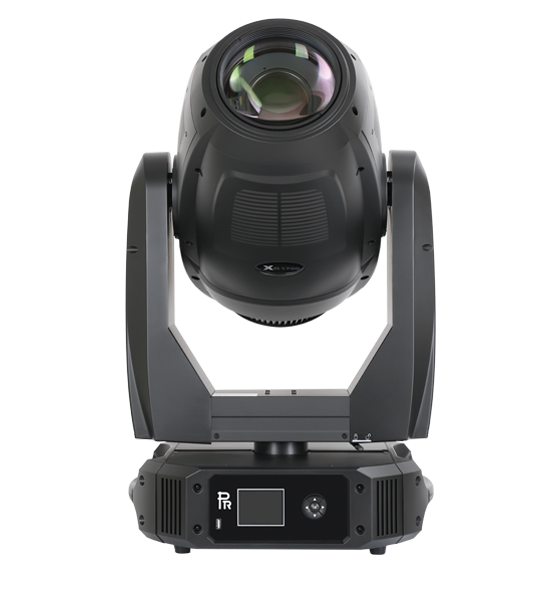

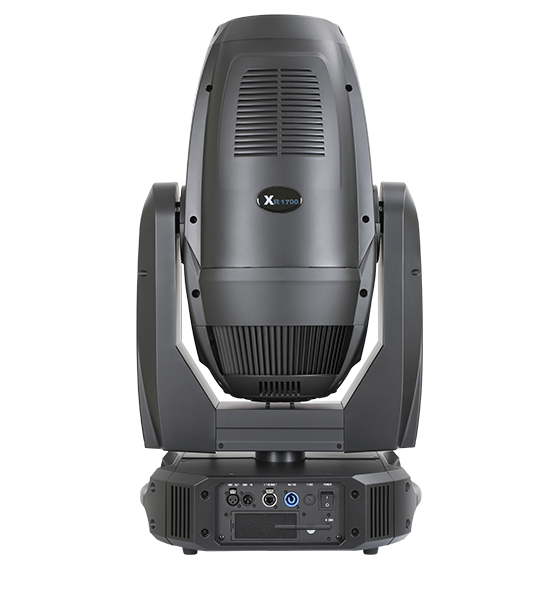

XR 1700 Spot
Model No.PR-2880
XR 1700 Spot
PR launched a very powerful moving head for any project-XR 1700 Spot, it equipped with advanced OSRAM 1700W lamp and optimized optical system, which can produce sharp beam(narrow angle 5°) effect. 5° to 55° zoom, CMY linear color mixing system can provide a full spectrum of colours, 2 frost wheels, 2 color wheels and 2 rotating gobo wheels, 2 prisms and dual layer effect wheel.
Features
Color
Gobos
Download

Input Voltages

Light Angle

208-240V AC, 50/60Hz

5°~55°


Power Consumption

Control

2100W@220V

International DMX512, 5 pins(optional 3 pins) interface


RDM control protocol

Light Source

Short mode 32 channels, standard mode 39 channels, extended mode 46 channels

OSRAM Lok-it! 1700/PS(5,600K, 750 hrs, single-ended)

Self-test mode



Strobe

Other Functions

Double shutter blades, 0.3-25 F.P.S

Adjustable pan & tilt speed


Fixture and lamp usage time display

Dimmer

LCD touch screen with English language menu

Mechanical dimmer 0-100% linear adjustment

Energy saving function of the ballast


Built-in analyzer for easy fault finding, error messages

CTO

Setup options by chargeable battery inside without power connection

0-100% linear CTO system

Modular construction for easy maintenance


Ethernet interface

Prism

DMX512 wireless receiver

Two 6-facet prisms(circular and linear)

DMX512 wireless transmitter(optional)

bi-drectionally rotating at variable speed, indexable


Physical

Frost

Housing: composite plastic, IP20

Two frost filters(heavy+light),

Ambient working temperature: maximum 40°C

linearly adjustable and both can overlap


Weight

Effect

Net weight: 52Kg

Dual effect wheels

individually and bi-directionally rotatable at variable speeds

Packaging


Standard: carton 855x675x758(mm)

Iris

Optional: flight case 720x580x900(mm)

5-100% linearly adjustable with macros



Accessories

Focus/Zoom

G clamp, 2 pcs

DMX linear focus/zoom

5 pins XLR connector, 1 set


Safety cord, 2 pc

Head Movement

Spare gobos, 4 pcs

Pan 540°, tilt 270° with auto position correction

Optional: Ω clamp, 2 pcs








CMY



Smooth CMY color mixing system with macros







Color Wheel



2 Color wheels: each with 7 dichroic color filters plus open



Half color effect, variable speed and bi-directional rainbow effect



Stepping/linear colour changing is available







Color Temperature



0-100% linear color temperature correction



Rotating Gobo



2 Rotating gobo wheels: each with 6 interchangeable gobos plus open, glass and metal gobos can be fixed


Bi-drectionally rotating, index, shaking at variable speed and bi-directional scrolling effect
