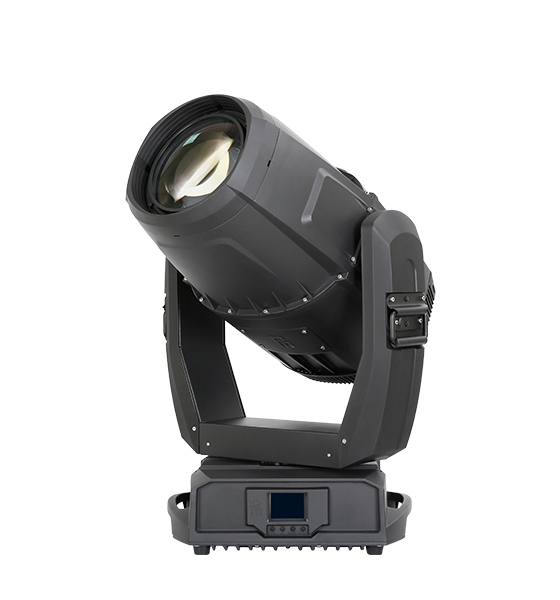

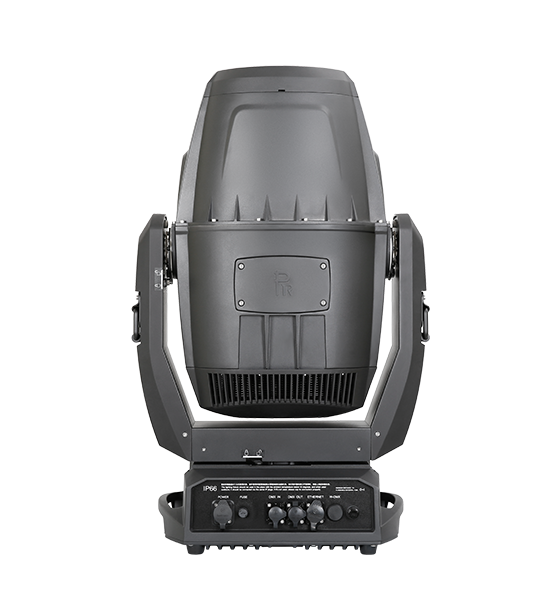

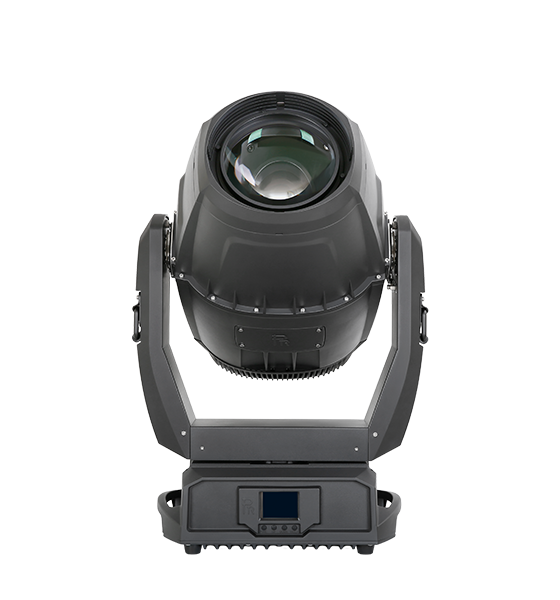

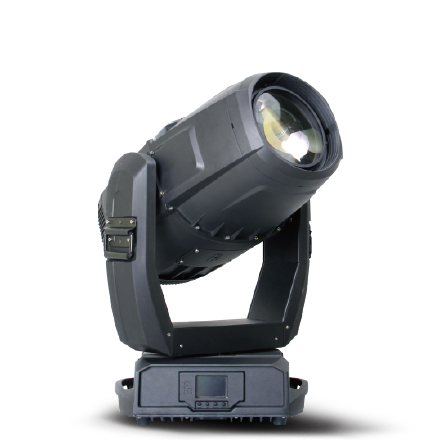

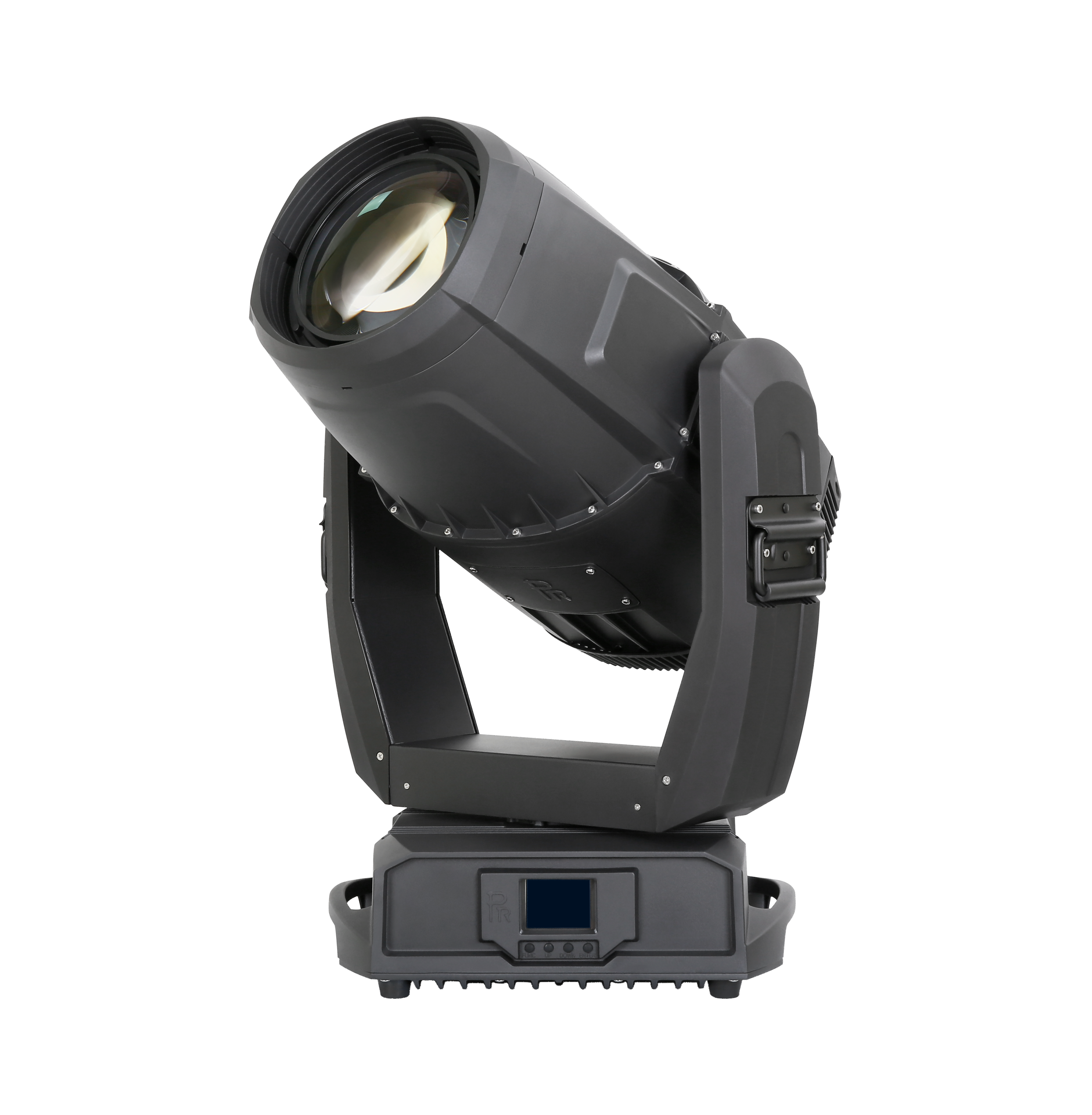

AQUA 580 BWS
Model No.PR-2597
AQUA 580 BWS
AQUA 580 BWS is an all weather fixture having functions of Beam, Spot and Wash with ingress protection up to IP66. Its wide front lens of 160mm produces 130,000lux @ 20m and at Beam mode its beam of 2° is full, solid, sharp and punching. At beam mode, the beam can be even reduced to 0 degrees via different sizes of beam reducers, realizing laser effect; At Spot mode, the wide zoom(2°-40°)shows its excellent optics ; At Wash mode, the zoom(3°-50°) and fast frost filter make good wash effects. Linear CMY color mixing and CTO, many color filters, rotating gobos, fixed gobos ,dynamic effects and 4 prisms make outstanding and sharp in-air visual effects. Smart magnet sensors make more accurate and faster positioning. Smart fan control for dynamic cooling makes it uniquely advance and advantageous. What’s more, it is an outdoor moving head fixture with high ingress protection for dusty, rainy, sunny and other harsh places.
Features
Colors
Gobo
Download
ELECTRIC PARAMETERS
Input voltages :100V~240V AC,50/60Hz
Input Power :800W @ 220V
Power factor :PF〉0.9

LAMP  SPECIFICATIONS
Lamp:PHILIPS MSD Platinum 500L Flex (550W)
Color Temperature:7800K
Manufacturers Rated Lamp Life:1500hours
Energy Save Mode:4000hours

INDEPENDENT CTO SYSTEM
Linear CTO system

PRISM
4 pcs of prisms which can be overlapped (8 facet circular prism+ 4facet linear prism) (9 facet circular prism+ gradient prism)  And other optional prisms

EFFECT WHEEL
1 graphic effect wheel, bi-directional rotation with variable speeds and can be overlapped with fixed gobo wheel and rotating gobo wheel

FROST
1pc independent frost filter

FOCUS
DMX linear focus

ZOOM
DMX linear zoom

DIMMER/STROBE
0-100% Linearly adjustable/ Double shutter blades, 0.3~25 F.P.S
HEAD MOVEMENT
Pan 540º, Tilt 270º with auto position correction

BEAM ANGLE
Beam Mode: 0°--  2°
Spot Mode: 2°--  40°, Linear Adjustment
Wash Mode: 3°--  50°,   Linear Adjustment

CONTROL
DMX512 5- pin interfaces(Optional 3-pin)
25channels in short mode, 31channels in standard mode , 35channels in extended mode
Self-test mode

OTHER FUNCTIONS
Adjustable Pan & Tilt speeds
Lamp’s and fixture’s hours displayed
Modular Structure for easy maintenance
DMX512 wireless receiever
DMX512 Wireless Transmitter ( Optional)
ArtNet and sACN ( Optional)

HOUSING
Cast aluminum ,high temperature and anti-UV ABS, IP66

NET WEIGHT
37.6Kg

WORK TEMPERATURE
Maximum ambient temperature: 45°C
Waterproof projector: When the ambient temperature is below minus 20 Celsius, please preheat the lamp not less than 10 minutes and then reset the projector




  【Version:20250804】



1 Color wheel: 12colors+ Open, rainbow effect with bi-directional and variable speeds, Stepping/linear color changing
CMY color mixing system with macros

1 Fixed gobo wheel: 17 gobos +Open
Bi-directionally rotatable, and shakable at variable speeds

1 Rotating gobo wheel:7Interchangeable Gobos +Open
Bi-directionally rotatable, and shakable at variable speeds
