XRLED 1800-W Framing
Model No.PR-8167

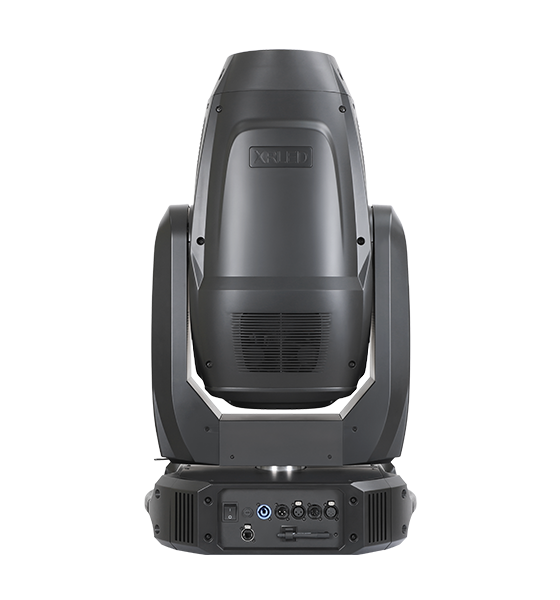

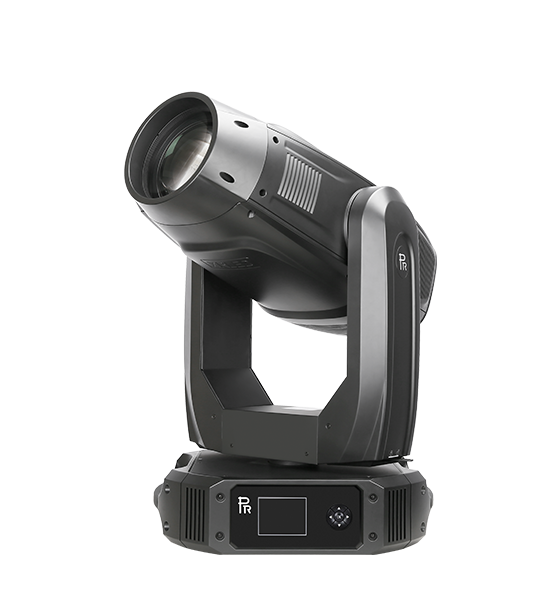

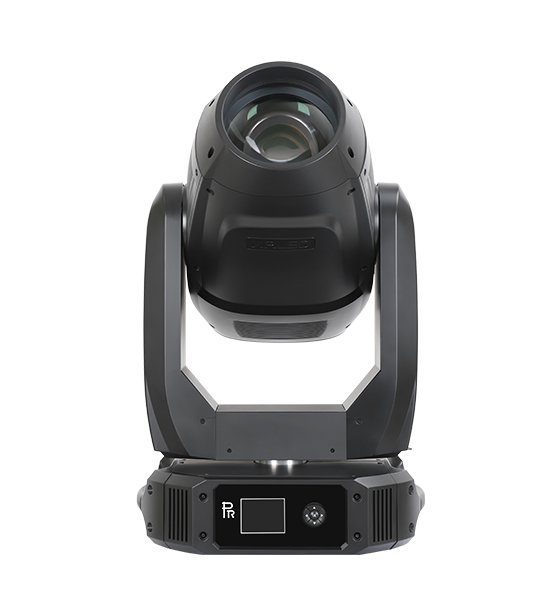

XRLED 1800-W Framing
XRLED 1800-W Framing is the most advance 800W professional LED moving head, featuring an exclusive endless framing system, designed and patented by PR, it also offers one rotating gobo wheel, one fixed gobo wheel, full CMY color system and 4-facet prism, it’s ideal for professional location such as theatre, stage, TV station, concert, etc.
Features
Colors
Gobo
Framing
Download

Input Voltages

Control

100-240V AC, 50/60Hz

International DMX512, 5 pins interface


Short mode 35 channels, standard mode 38 channels and extended mode 54 channels

Power Consumption

RDM protocol

1050W@220V

Art Net protocol



Master-slave mode, stand-alone mode, self-test mode

Light Source



800W white LED(8,000K), 20,000 hrs

Other Functions



Adjustable pan & tilt speed

Strobe

Color touch panel display in English, and its brightness and contrast adjustable

Electronic strobe, 0.3-25 F.P.S

Fixture and lamp usage time display



Built-in analyzer for easy fault finding, error messages

Dimmer

Setup options by chargeable battery inside without power connection

0-100% linear adjustment

Software version display



Modular structure easy for maintenance

CTO

Network interface

0-100% linear CTO system

DMX512 wireless receiver



DMX512 wireless transmitter(optional)

Prism



One 4-facet prism

Weight

bi-directionally rotatable at variable speed, indexable

Net weight: 45kg





Frost

Packaging

One linear frost filter

Standard: carton 845x645x790(mm)



Optional: flight case 710x550x860(mm)

Effect



1 Replaceable animation wheel, bi-directionally rotatable at variable speed

Physical


Housing: composite plastic, IP20

Iris

Ambient working temperature: maximum 45°C

5-100% linear adjustment with macro





Accessories

Focus

G clamp, 2 pcs

Motorized linear focus

5 pins XLR connector, 1 set



Safety cord, 2 pcs

Zoom

Power cord, 1 pc

Motorized linear zoom

Optional: Ω clamp, 2 pcs





Head Movement



Pan 540º, tilt 270º with auto position correction



Swap and invert functions of pan and tilt




Light Angle



6°~56°





CMY

CMY linear color mixing with macros



Color Wheel

1 Color wheel: 6 dichroic colors filters plus open



Half color effect, variable speed rainbow effect



Stepping/linear color changing is optional



Linear color temperature adjustment






Fixed Gobo

1 Fixed gobo wheel: 7 replaceable gobos plus open



Shakable at variable speeds



Rotating Gobo

1 Rotating gobo wheel: 6 replaceable gobos plus open, glass or metal gobos can be fixed



Bi-directionally rotatable and wheel scrolling at variable speed, indexable






Framing
4 Sets of framing blades

Endless rotation, graphics at different sizes and shapes, full curtain effect
