XR 580 BWS
Model No.PR-2552

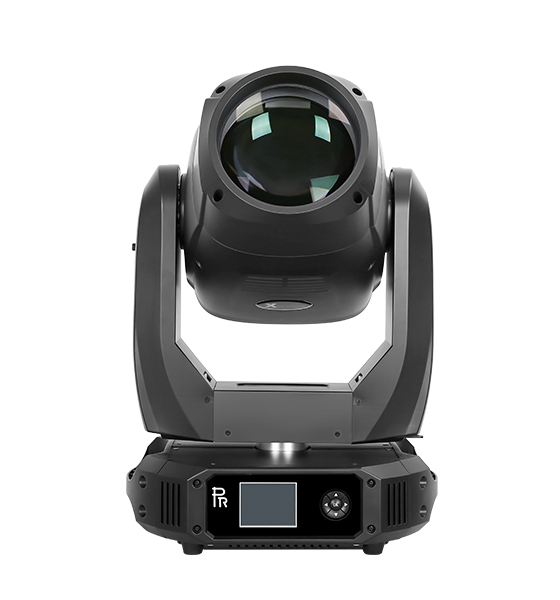

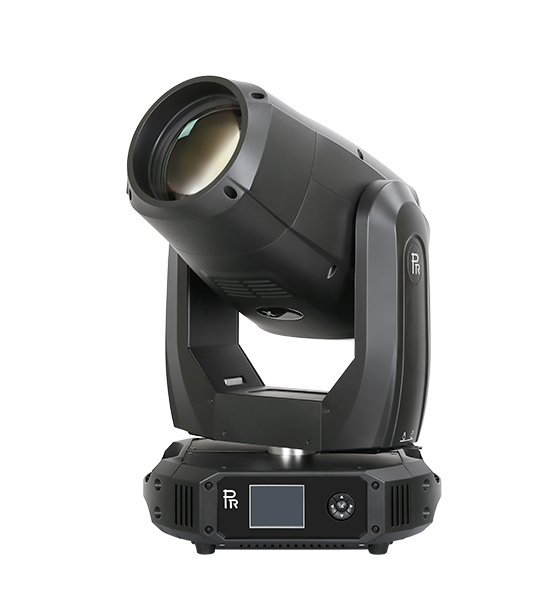

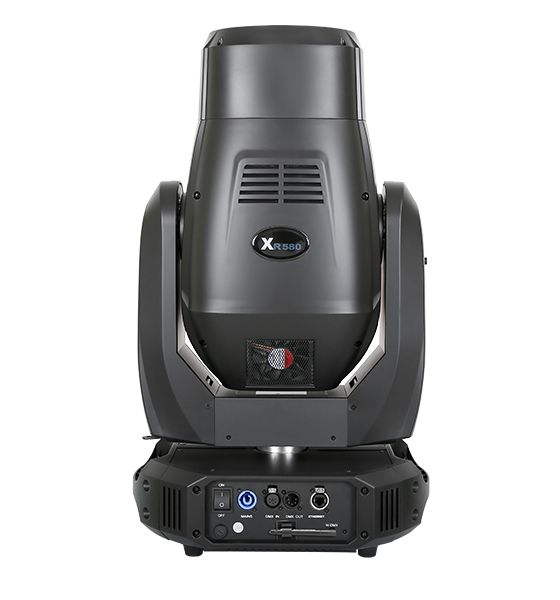

XR 580 BWS
XR 580 BWS(Three in One) is a smart and multi-functional(Beam, Spot and Wash) product with many effects . 160mm front lens produces full and solid beam with 130,000lux @20m, longer projecting distance and perfect visual effects. Fast frost produces wash effect; optical system with smaller beam angle but wider zoom range, double strobe flags and 3 prisms proudce dynamic and plentiful in-air effects; a rotating gobo wheel(7gobos+open),a fixed gobo wheel(17gobos+open), a animation effect, linear CMY color mixing, linear CTO and a color wheel(12colors+open), the combination of which produces infinite colors and hues. And rainbow effect by continually and fast rotating color wheel. It’s for TV studio, theaters, entertainment, concerts and etc..
Features
Colors
GOBO WHEEL
Download
ELECTRIC PARAMETERS
Input voltages:100V~240V AC,50/60Hz
Input Power :800W @ 220V
Current at Maximum :8A
Power factor:PF〉0.9

LAMP  SPECIFICATIONS
Lamp PHILIPS MSD Platinum 500L Flex (550W)
Color Temperature 7800K
Manufacturers Rated Lamp Life 1500hours
Energy Save Mode 4000hours

INDEPENDENT CTO SYSTEM
Linear CTO system (0-100%)

PRISM
3 overlapping prisms (9 facet circular prism)(8 facet circular prism+4 facet linear prism) and some other optional prisms

EFFECT WHEEL
1 graphic effect wheel, bi-directional rotation with variable speeds, and overlapping fixed and rotating gobo wheels

FROST
1Pc frost filter

FOCUS
DMX linear focus

ZOOM
DMX linear focus

DIMMER/STROBE
 0-100% Linearly adjustable/ Double shutter blades, 0.3~25 F.P.S
HEAD MOVEMENT
Pan 540º, Tilt 270º with auto position correction

BEAM ANGLE
Beam Mode:     0°--  2.0°
Spot Mode:      2.0°--  40°Linear Adjustment
Wash Mode:     3°--  50°  Linear Adjustment

CONTROL
DMX512, 5 pin interfaces (Optional 3-pin)
25channels in short mode, 31channels in standard mode , 35channels in extended mode
Self-test mode

OTHER FUNCTIONS
Adjustable Pan & Tilt speeds
Lamp’s and fixture’s hours displayed
Modular Structure for easy maintenance
DMX512 wireless receiever
DMX512 Wireless Transmitter ( Optional)
ArtNet and sACN  ( Optional)


HOUSING
High temperature ABS, IP20

NET WEIGHT: 26Kg

AMBIENT TEMPERATURE
Temperature at maximum 40°C
Waterproof projector: When the ambient temperature is below minus 20 Celsius, please preheat the lamp not less than 10 minutes and then reset the projector.





  【Version:20250804】

CMY color mixing system with macros
1 Color wheel: 12colors+ Open, rainbow effect with bi-directional and variable speeds, Stepping/linear color changing

1 Fixed gobo wheel: 17 gobos +Open
Bi-directionally rotatable, and shakable at variable speeds



1 Rotating gobo wheel:7Interchangeable Gobos +Open
Bi-directionally rotatable, and shakable at variable speeds
