AQUA 380 BWS
Model No.PR-2366
AQUA 380 BWS

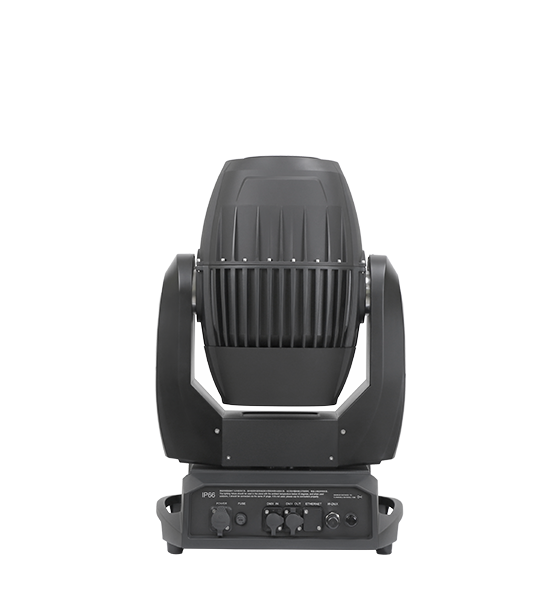

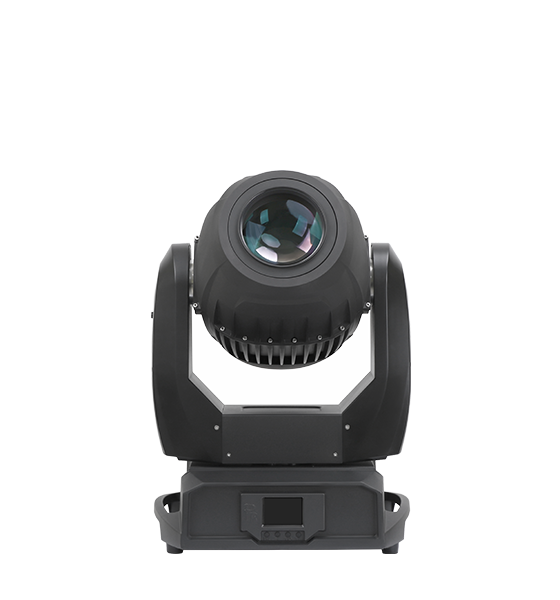

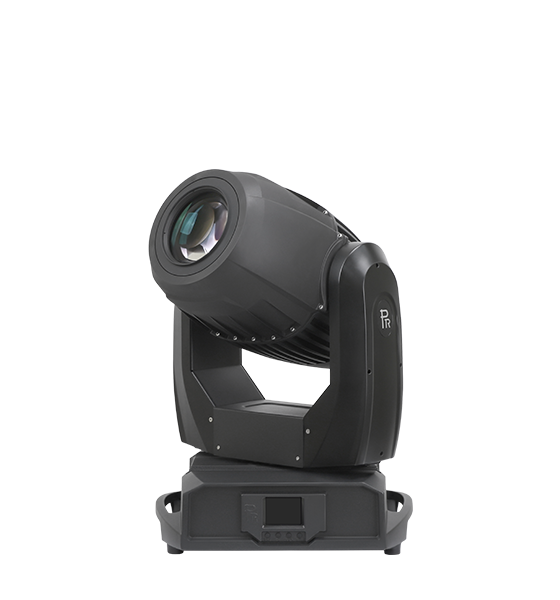

AQUA 380 BWS is waterproof IP66 moving head which integrates three features(Beam, Wash, Spot) in a single unit, it adopted PR patented technology, combines advanced Philips longlife Platinum 300S Flex lamp with superb optical system, it is your best choice for outdoor activities.
Features
Colors
Gobo
Download
ELECTRICALPARAMETERS
Input voltage: 100V-240VAC,50/60Hz
Input power: 600W@100V
570W@ 220V
Maximumcurrent: 6.7A
Powerfactor: PF>0.9

SPECIFICATIONSOFLIGHTSOURCE
Philips MSD Platinum Flex 300S
ColorTemperature 7800K+/-300K
ManufacturersRatedLampLife  6000hrs(Reference the spec of MSD Platinum Flex 300S)、

BEAMANGLE
Beam/SpotMode:2.5°-30°
WashMode :7°-35°

PRISM/EFFECTWHEEL
3Prisms(standard 8facet prism+9facet prism+ linear prism)Bi-directionalrotation at variable speeds
(Optional 3-16 facet prismor gradient prism)

FROST
1 Deep frostfilter

FOCUS
0-100% linearly adjustable by DMX
ZOOM
0-100% linearly adjustable by DMX

STROBE
Double shutter blades, 0.3~20 F.P.S

HEADMOVEMENT
Pan 540º,Tilt 270º with auto position correction

CONTROL
InternationalstandardDMX512 signal and 5 pin interfaces
23channelsin shortmode, 27channelsin standardmode,32channel in extendedmode
Adjustablemode

OTHER FUNCTIONS
AdjustablePan&Tiltspeed
Fixture and lamp hours’display
Modular construction for easymaintenance
DMX512 wirelessreceiverDMX512wirelesstransmitter(optional)

HOUSING
CastAluminum, high temperature resistant/anti-UVABS,IP66

WEIGHT
29K

  【Version:20220914】



CMYlinear colormixing systemwithmacros
1ColorWheel
12Dichroic colorfilters +Diffuser+ Open
Variable speed and bi-directionalrainbow effect
Linear color changing is available
1 Fixed gobo wheel:11 static gobos+ open
Shaking and bi-directional wheelscrolling at variable speeds

1Rotating gobowheel: 12 gobos+ Open
Shaking and bi-directional wheelscrolling at variable speeds
Gobo changeable

Name
Description
Download
Specification
AQUA 380 BWS
User manual
AQUA 380 BWS
Lighting Library
MA2,Avolites
