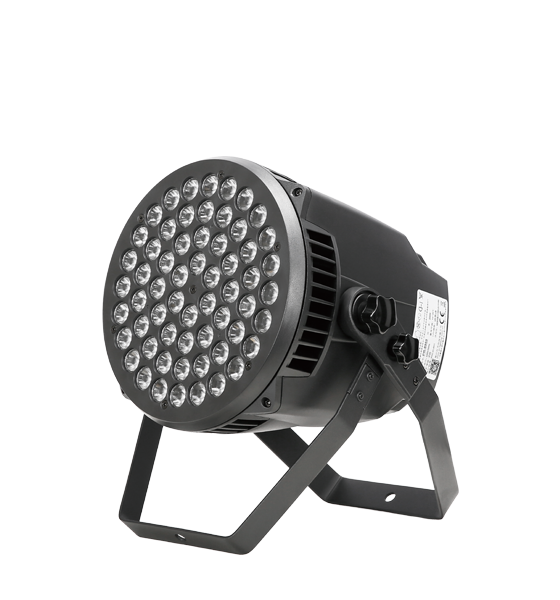

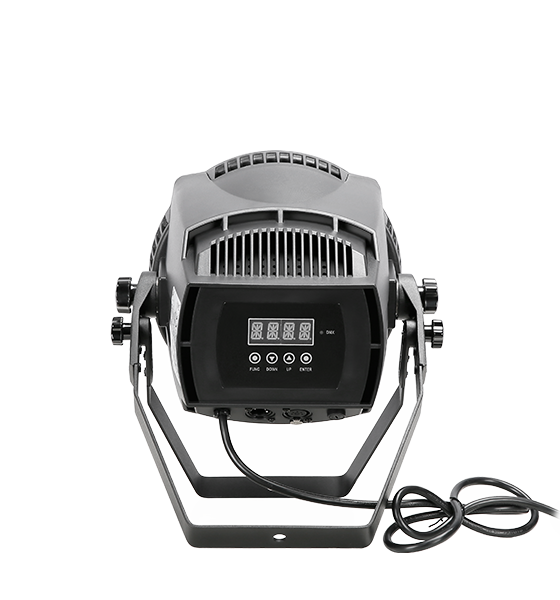

Xpar 360
Model No.PR-8955
Xpar 360

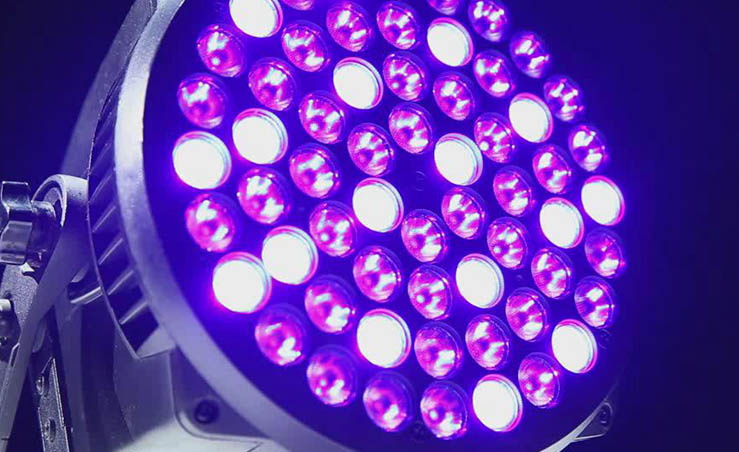

With 60 pcs OSRAM LEDs(RGBWA), this product features smooth color mixing plus macro, wide color temperature varies from 3200K to 10000K, fast strobe, very light weight and small sizes. It is ideal for TV studio, concert, banquet hall, and so on.
Features
Colors
Download
Light Source

Channels

OSRAM 60x3W(17R+17G+17B+6W+3A), 50000 hrsShort mode 8 channels, standard mode 12 channels and extended mode 16 channels



Input Voltages

Housing

100V~240V AC, 50/60Hz

High intensity cast aluminum alloy


IP20
Power Consumption



200W@220V

Net Weight


3.9kg
Strobe



Electronic strobe, 0-25 F.P.S





Dimmer



0-100% linearly adjustable






Effect



Rainbow and animation effects



Light Angle



Beam angle(1/2 Maximum) θ­1/2: 15°

Field angle(1/10 Maximum) ­θ1/10: 28°


Lens angle: 15° (optional 8°, 25 °, 45°)





Control


DMX512, 5 pins(optional 3 pins) intereface




Color System


R/G/B/W/A and color mixing , with macro





Color Temperature


Linear color temperature correction from 3,200K to 10,000K

















Name
Description
Download
Specification
XPAR 360 Spec
User manual
XPAR 360
Certificates
XPAR 360 CE
DWG
XPAR 360
Lighting Library
MA2,Avolites
Videos
