PR LIGHTING LTD.

Model No.PR-8128

PLANET

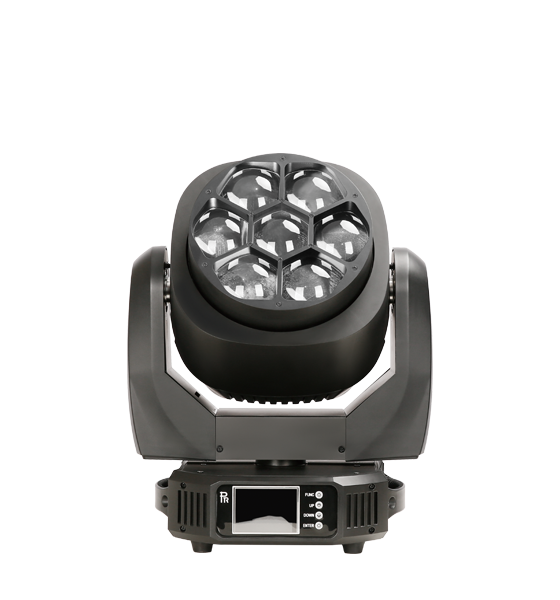

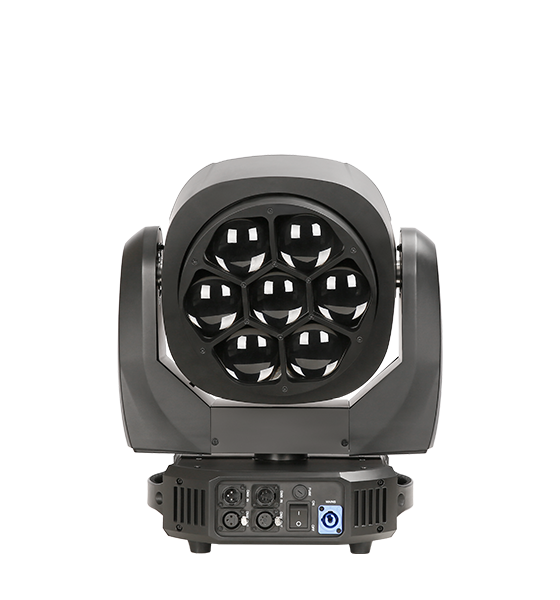

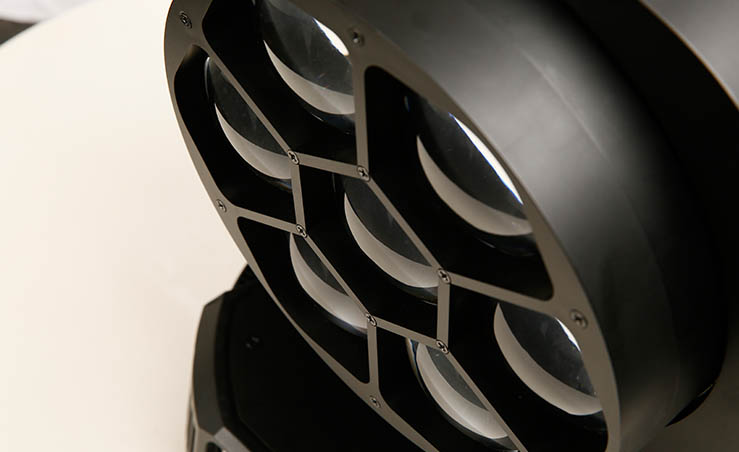

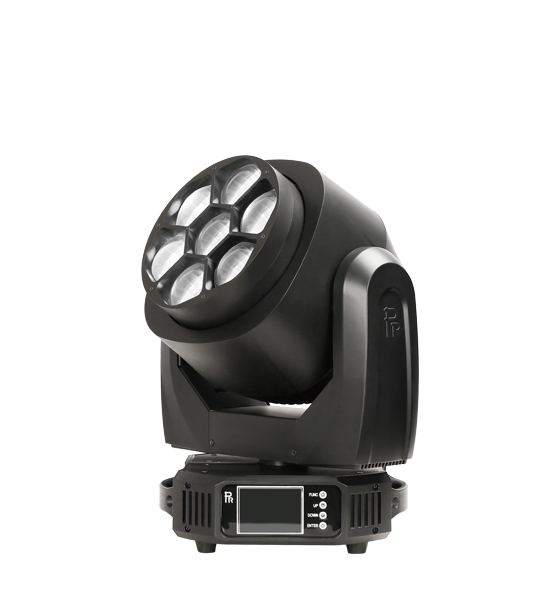

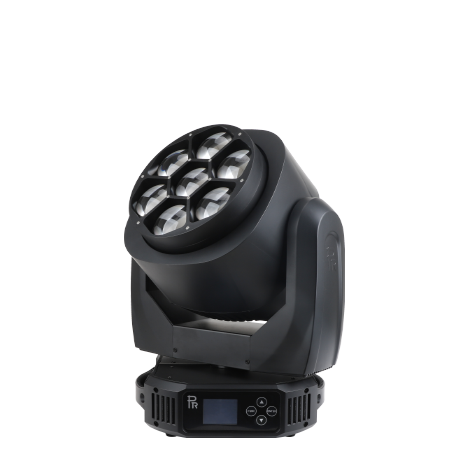

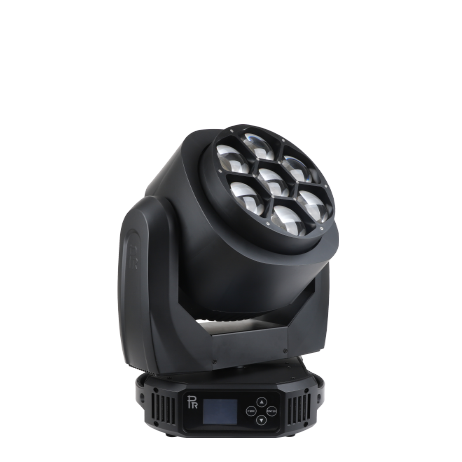

PLANET is the answer for with tight 3.3° beams and a wide far-reaching quality wash in compact housing. It fixtures 7 pcs 60W RGBW LEDs with PR patented optics especially developed for a high output in any stage and the spectacular zoom range of 3.3° to 60°. For the next level, individual control of each LED pixel and attractive colorful chases provide "Kaleidoscope" effects both to look at and in the air.

Features

Colors

Download

Light Source		Channels
OSRAM 7x60W LEDs(RGBW, 4 in 1), 2700K~10000K, 50000 hrs		Short mode 26 channels, standard mode 30 channels and extended mode 54 channels

Input Voltages		Other Functions
100V~240V AC, 50/60Hz		DMX512 wireless receiver, (optional: DMX512 wireless transmitter)
		Ring control, pixel control, each color of RGBW of a LED lamp controllable
Power Consumption
600W@220V		Housing
		High-temperature-resistant engineering plastic
Strobe		IP20
Electronic strobe, 0-25 F.P.S, preset pulse strobe effect
		Net Weight
Dimmer		14kg
0-100% linearly adjustable

Effect
Rainbow, Effect modes(kaleidoscope, swirl), multiple macros

Light Angle
(1/2 peak)θ1/2, linear zoom: 3.3°~ 60°

Head Movement
Pan 540°, tilt 210° with auto-positioning

Control
DMX512, 5 pins(optional 3 pins) intereface

Color System
RGBW and color mixing, with macros

Color Temperature
Linear color temperature correction from 2,700K to 10,000K

Name

Description

Download

Specification

PLANET Spec

User manual

PLANET

Certificates

PLANET CE

Lighting Library

MA2,Avolites
