ARC LED 1572
Model No.PR-6262
ARC LED 1572

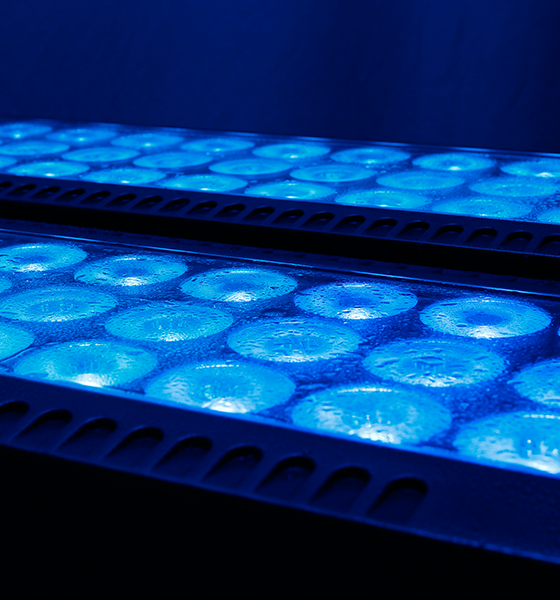

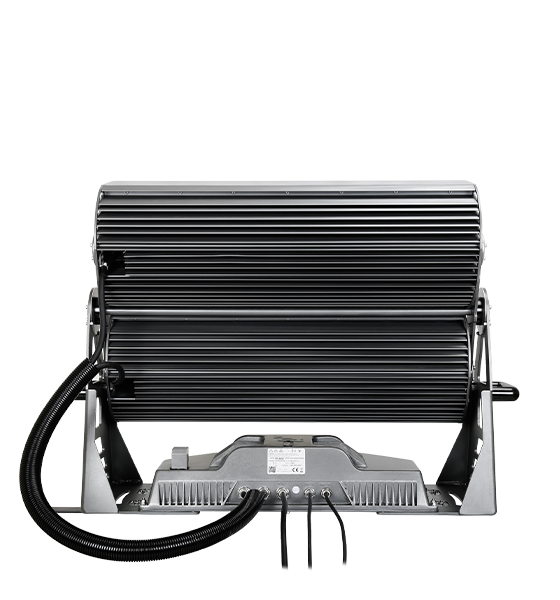

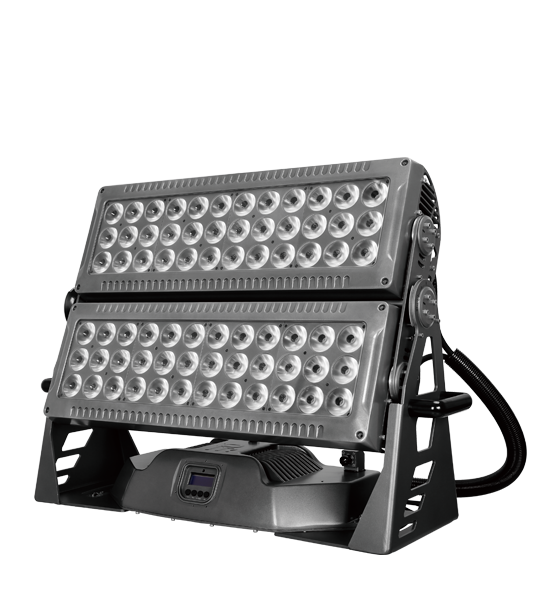

ARC LED 1572 is a new launched exterior architectural luminaire, with two independent heads. It features 72 pcs of Philips 15W LEDs(RGBW 4 in 1), color temperture linear adjustment, combined with 4 individual areas control, 37° x 57° square light, rating IP67. It’s ideal for medium and large scale stadiums, architectural lighting, theme parks, etc.
Features
Colors
Download

Input Voltages

Other Functions

100-240V AC, 50/60Hz

LED board temperature display


Fixture usage time display

Power Consumption

Brightness level control

1080W@230V

Timer control


DMX mode, setting status

Light Source

operation mode and user memory data can be transmitted by synchronous control

PHILIPS 72x15W(RGBW 4 in 1), 50,000 hrs

DMX512 wireless receiver(optional)


DMX512 wireless transmitter(optional)

Strobe


Electronic strobe, 0-25 F.P.S(pulse strobe effect)

Physical

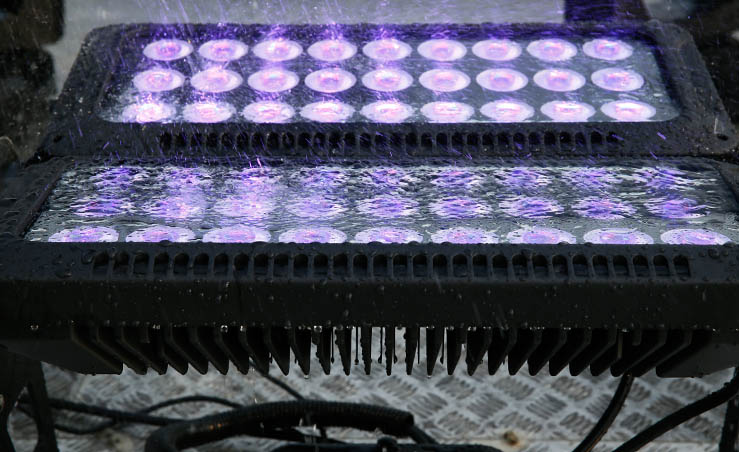

Housing: high-intensity die-casting aluminum, IP67

Dimmer

Ambient working temperature: -20°C~40°C

0-100% linearly adjustable



Weight

Light Angle

Net weight: 46kg

Beam angle(1/2peak) θ1/2 : 14°


Field angle(1/10peak) θ1/10 : 37° x 57°

Packaging

Standard: carton 968x718x393(mm)

Control

Optional: flight case 1095x520x652(mm)

International DMX512, 3 pins(optional 5 pins) interface


Standard mode 10 channels and extended mode 23 channels

Accessories

Master-slave mode, stand-alone mode, test mode

G clamp, 2 pcs

16 Preset memories, 16 user memories

XLR cable, 1 pc

Preset memories and user memories can be loaded by control channels

Safety cord, 1pc

16 level speeds adjustable
Optional: omega clamp, 2 pcs








Color System


R/G/B/W and color mixing , with macro
