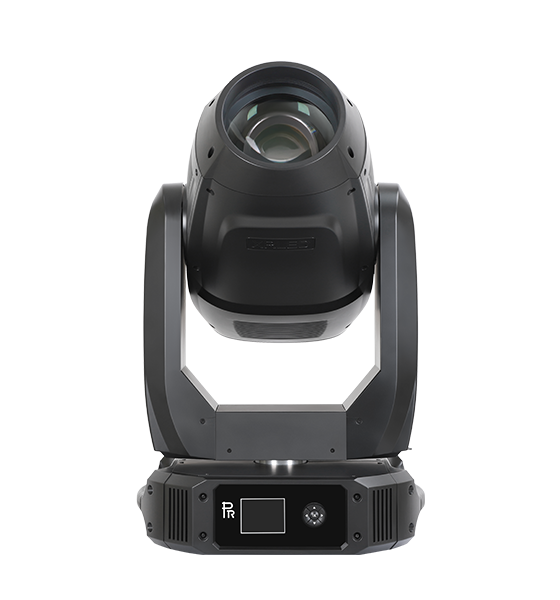

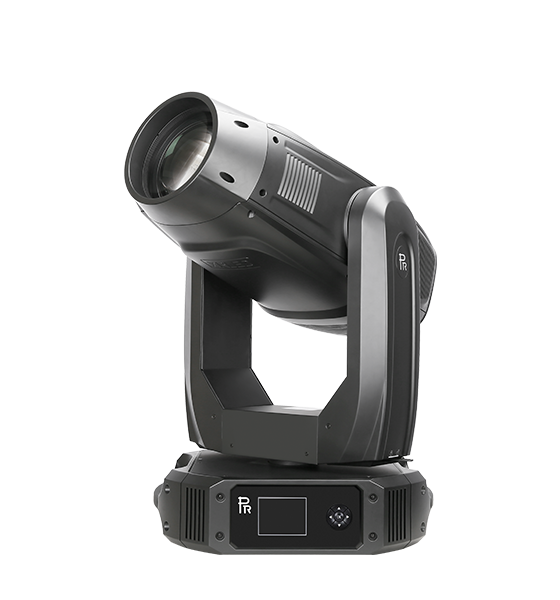

XRLED 1500-W Spot
Model No.PR-8170A
XRLED 1500-W Spot
XRLED 1500-W Spot is a new launched LED spot moving head, equipped with 600W LED module. The unit offers double rotating gobo wheels, colorful prism, wide range beam light, combined with touch screen, network interface, intelligent fan control, automatic focusing, sensor fault diagnosis, etc.
Features
Colors
Gobo
Download
Light Source

Iris

600W (8,000K), 20000 hrs, Optional: Ra≥95 , R9≥905 - 100% linearly adjustable with macros



Input Voltages

Focus

100V~240V AC, 50/60Hz

Motorized linear focus




Power Consumption

Light Angle

880W@220V, 930W@100V

6°~56°




Strobe

Head Movement

Double shutter blades, 0.3-25 F.P.S

Pan 540º and tilt 270º with auto position correction and adjustable speed




Dimmer

Control

0-100% linearly adjustable

DMX512, 5 pins(optional 3 pins) intereface




CTO

Channels

0-100% linear CTO system

Short mode 27 channels, standard mode 31 channels and extended mode 38 channels


Prism

Other Functions

4-facet prisms, bi-directionally rotatable at variable speed, (optional: color 4-facet prism)
DMX512 wireless receiver, (optional: DMX512 wireless transmitter)




Effect

Housing

1 Interchangeable graphic effect wheel, bi-directional rotation with variable speeds
High-temperature-resistant engineering plastic

IP20

Frost



1 Frost filter, linear frost effectNet Weight



42kg


CMY


CMY linear mixing system with macros






Color Wheel


1 Color Wheel: 6 colors+ open


Half color effect, rainbow effect with bi-directional and variable speeds














Rotating Gobo



2 Rotating Gobo Wheels: each with 6 replaceable gobos plus open, glass and metal gobos can be fixed
Bi-drectionally rotating, index, shaking at variable speed and bi-directional scrolling effect






Name
Description
Download
Specification
XRLED 1500-W Spot Spec
User manual
XRLED 1500-W Spot
DWG
PR-8170A
Lighting Library
MA2,Avolites
