AQUA LED 3000-W Framing
Model No.PR-8139
AQUA LED 3000-W Framing

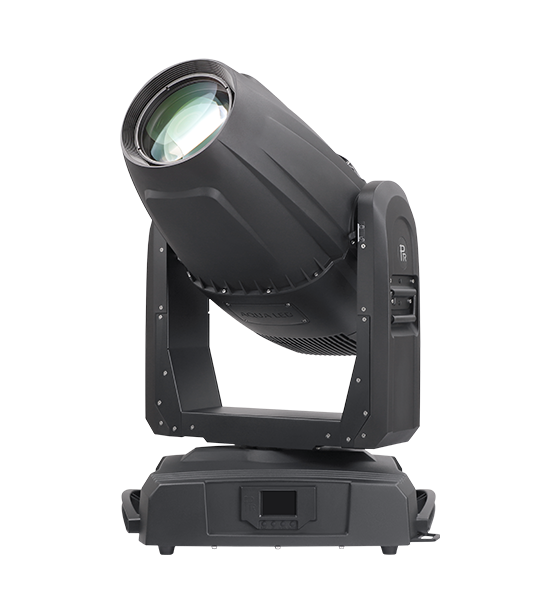

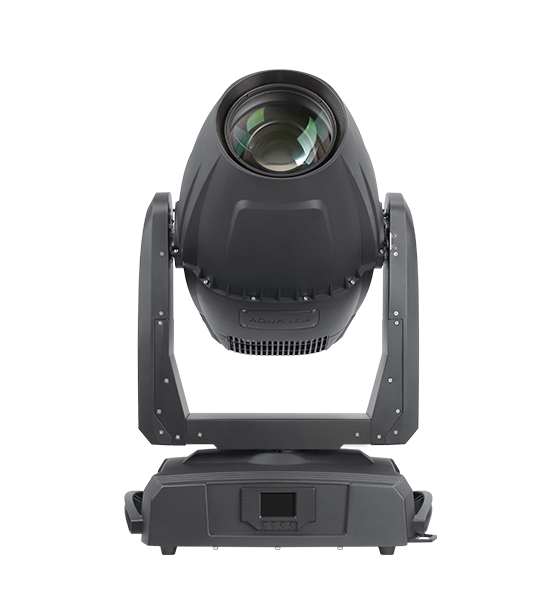

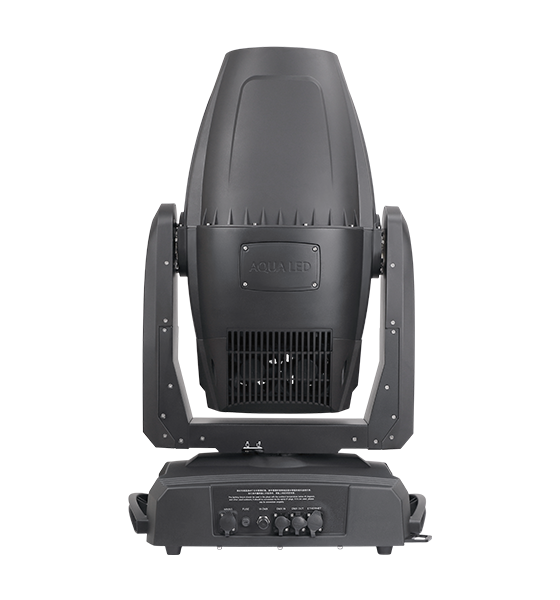

AQUA LED 3000-W FRAMING is an all weather moving head framing lighting fixture with IP66, suitable for harsh places with heavy dust ,rain, strong sunlight and etc.. It has a 360°continually rotating framing module made of 4 framing blades greatly improving produced graphics’ flexibility and artistry. It has Dimmer, Zoom, Focus, CMY color mixing, Iris, CTO and etc. being linearly adjusted, and only the lighting fixture with high standard technologies can express stage arts subtly and show skillful designs by stage art designers perfectly.

Input Voltages

Other Functions

100V-240V AC,50/60Hz

Pan and Tilt speeds adjustable

Pan and Tilt swappable and invertible

Input Power

Touch color screen, Chinese and English menus, brightness and contrast adjustable


Error diagnostic system with sensors

Power factor: PF>0.95

Display of fixture hours and software versions

Modular construction for easy maintenance

Light Source

Isolated input signals

Lamp 1200W ,LED white(8000K,20000hrs)

ArtNet interfaces(optional)

CRI : Ra ≥70, Ra ≥95(Optional)

DMX wireless receiver

DMX wireless transmitter(optional)


Linear CTO system(0-100%)

Housing And Ingression Protection

High tensile cast aluminum + high temperature  plastics, IP66


1pc of 4-facet circular prism, bi-directional rotation

Working Temperature

with varied speeds with indexing function

Working temperature 45℃ at maximum

Note:If the ambient temperature is below minus 20℃,


please reset a projector after preheating it by striking

1frost filter ( 0-100% linear )

the lamp for more than 30 minutes.

Effect Wheel


1 animation effect wheel, bi-directional rotation with varied speeds

Net weight 61Kg



Linear electronic dimmer 0-100% with 16 bit control

G clamp  2  Pcs

3 dimmer speeds

XLR connector  1  Set  Male and female

4 dimmer gamma curves

Safety cord 2  Pcs

Dimmer frequency(1.2K-25K) good for 4K high speed

User manual 1  Pc

video camera

Ω clamp 2Pcs  Optional

Power cord 1  Pc

Head Movement

Pan 540º, Tilt 270º with auto position correction


and16 bit control

Electronic strobe, 0.3~25 F.P.S



International standard DMX512 signal with 5-pin DMX512 interfaces

Linear iris 5-100% with macros

RDM protocol

ArtNet protocol(optional)

Beam Angle

35channels in short mode, 38channels in standard mode,54channel in extended mode

Linear zoom 6°~  56°with 16 bit precision

Master/Salve synchronized control mode

Standalone mode


CMY linear coloring mixing system with macros

Color Wheel

6 exchangeable colors+ open

Half color effect, Stepping/linear colors

Bi-directional color rainbow effect with variable speeds

Fixed Gobo

1 Fixed Gobo Wheel: 7 exchangeable gobos+ open

Shake effect with varied speeds and bi-directional rotation with varied speeds

Rotating Gobo

1 rotating gobo wheel: 6 exchangeable+ open, glass/metal gobos

Bi-directional rotation, indexing, shake with varied speeds

bi-directional scrolling with varied speeds


Framing module:4 framing blades to make graphics with different sizes and shapes

Each blade to make full curtain effect

Bi-directional continual rotation for the whole module
