Input Voltage | Strobe | ||
100V~240V AC,50/60Hz | Electronic strobe:0.3-25 F.P.S. | ||
Input Power | Other Functions | ||
650W @ 100V | Pan and Tilt speed adjustable | ||
620W @ 220V | Auto-adjusting fan speed | ||
Power factor: PF〉0.9 | Auto power off if LED board temperature too high | ||
Display brightness and contrast adjustable | |||
Light Source | LED lamp-ON hours and power on hours displayed | ||

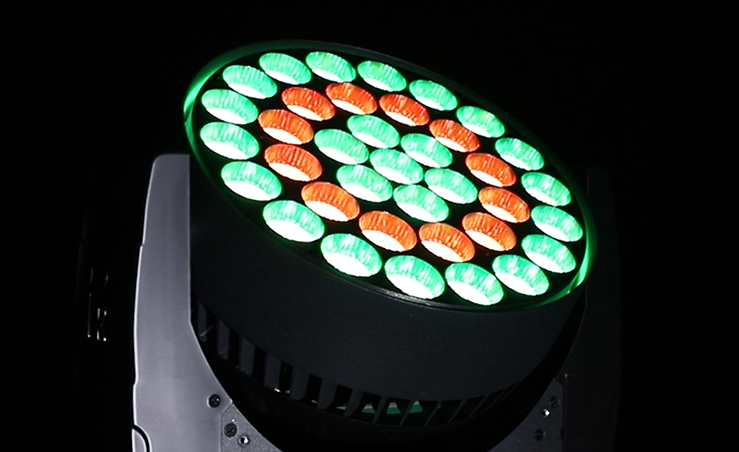

LED lamp ( RGBW 15W, 37pcs, 50000hrs) | DMX512 channels displayed | ||
Display inverted | |||
Pan And Tilt | |||
Pan: 540°；Tilt：270°with auto-positioning correction | Housing | ||
High temperature ABS+ cast aluminum , IP20 | |||
Dimmer | |||
0-100% linearly adjustable | Weight | ||
Net weight 12.4Kg; Gross weight 16.5Kg 2 in 1 | |||
Color Temperature | |||
Color temperature linearly adjustable(2700K ~10000K) | Packaging | ||
Standard: 450x450x420(mm) | |||
Beam Angle | Optional: 780x440x660(mm) 2 in 1 | ||
Beam Angle(1/2 peak) θ1/2 : 13°~52° | |||
Field Angle(1/10 Peak) θ: 27°~70° | Ambient Temperature | ||
Max. Ambient temperature : 45°C | |||
Control | |||
DMX512, 5 pins interfaces | Accessories | ||
RDM protocol | G Clamp 2 Pcs | ||
25 in short mode,29channels in standard mode, and 41 channels in extended mode | XLR Connectors 1 Set Male and Female | ||
Master/Salve Synchronous Control Mode | Safety Cord 1 Pc | ||
Static scene | User Manual 1 Pc | ||
Standalone mode | Ω Clamp 2 Pcs Optional | ||
| Self-test mode | |||
| Color System | |||
RGBW linear color mixing, with color macros | |||
