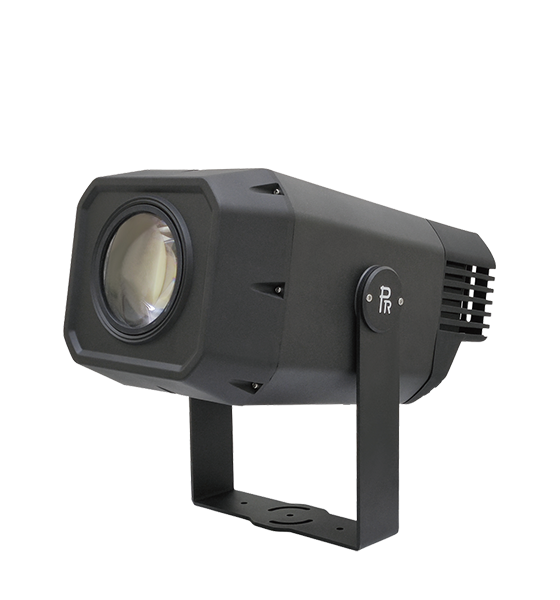

CUBIX 600
Model No.PR-6602
CUBIX 600
Features
Download

Input Voltages

Other function

100V~240V AC,50/60Hz

LCD screen


DMX 512 port for firmware upgrade, a convenient and quick way for firmware upgrade

via DMX cable

Input Power

Over temperature protection

180W@220V

Built-in NTC thermal monitoring. LED’s output power will be automatically decreased if over-temperature occurs

Fixture time and software version will be displayed

Power factor: PF>0.9

Display can be inverted



Light Source

Housing

150W White LED,1pc(7500K),20000hrs

High tensile cast aluminum , IP66


Functions

Net Weight

1color wheel, 5colors+open

9Kg
1 rotating gobo wheel, 5gobos+open, custom gobo available


1 3-facet circular prism, bi-direction rotation




Focus

Packaging

0-100% linear focus

Standard: carton 700x690x480(mm)



Zoom

Operation Temperature

Fixed zoom 55°,optional 30°

Highest ambient temperature 40℃


Dimmer

Accessories

0-100% linear adjustment

Safety cord 1 Pc

User manual 0 Pc QR code

Strobe


Electronic Strobe 0-25FP.S. with preset strobe pulse effect




Beam angle


55°with motorized focus




Control


International standard DMX512 signal control protocol


DMX512 3 pin and 5 pin interfaces


Master/Slave synchronized Mode


Stand alone mode, preset mode, self test mode and static scene mode


3 operation modes(DMX mode, user memory, presetmemory)
