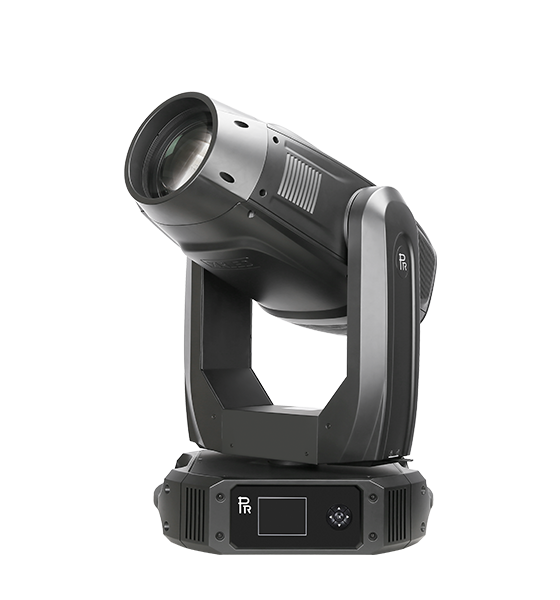

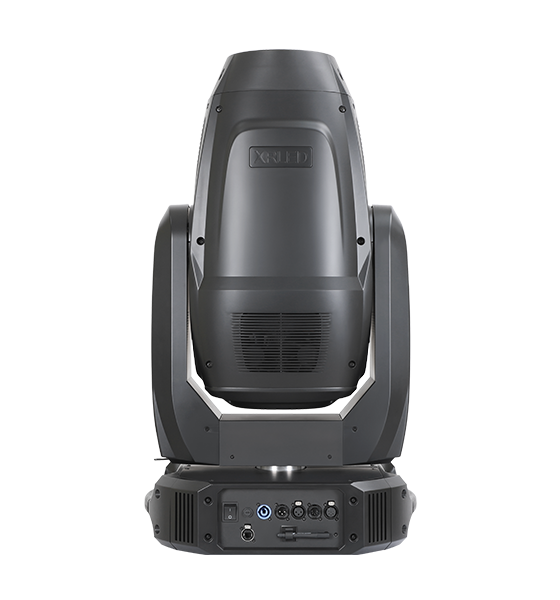

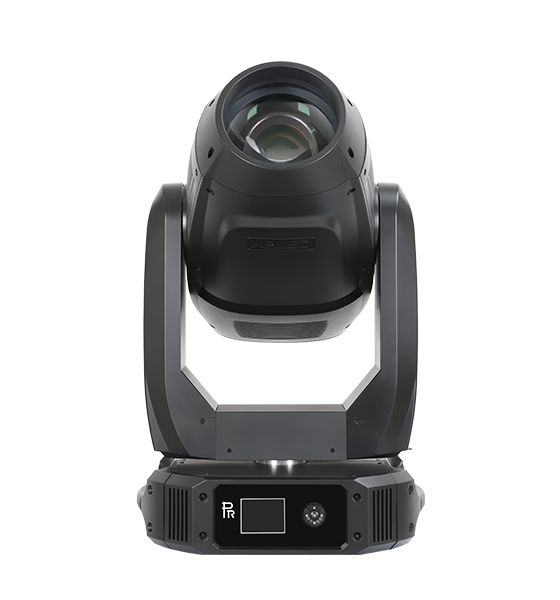

XRLED 1800-W Spot
Model No.PR-8162
XRLED 1800-W Spot
The XRLED 1800-W Spot is an innovative moving head spot luminaire which produces a staggering powerful output, and maintains a perfect working temperature for fixtures even in hot or cold conditions. It features 800W LED engine, 8000K, 6°~56° motorized zoom, full CMY color mixing with macros, and equipped with linear CTO system, 1color wheel with 6 dichroic color filters plus open and 2 rotating gobo wheels.
Features
Download
Input Voltage

Head Movement

100V-240V AC50/60Hz

Pan 540º, Tilt 270º with auto position correction



Input Power

Beam Angle

1050W@220V AC

Linear zoom 6°~  56°with 16 bit precision

1100W@100V AC



Control

Light Source

International standard DMX512 signal , 5 pin interface(Optional 3pin interface)

Lamp 800W (8000K, 20000hrs)

RDM control protocol

Ra70

ArtNet protocol

Ra95,R990 LampOptional

27channels in short mode,


31channels in standard mode,38channel in extended mode

Colors

Master and slave synchronized control mode

CMY linear coloring mixing system with macros

Stand-alone mode

1 Color Wheel

Master mode

6 colors+ white


Bi-directional rainbow effect with variable speeds and half color effect

Other Functions

Linear /stepping color changing

Adjustable Pan & Tilt speeds


Pan and Tilt swappable and invertible

CTO

Fixture and lamp hoursdisplay

Linear CTO system(0-100%)

Color screen, Chinese-English menus, brightness and contrast adjustable


Diagnostic system with sensors

Gobos

Built-in rechargeable battery for settings via control panel without mains power

2 rotating gobo wheels: 6 exchangeable+ white, glass or metal gobos

Software version display

Bi-directional rotation, indexing, shake with varied speeds, bi-directional

Protection and insulation of input signals

scrolling with varied speeds

Modular construction for easy maintenance


ArtNet interface

Prism

DMX512 wireless receiver

1pc 4 facet prism

DMX512 wireless transmitter(Optional

bi-directional rotation with varied speeds and indexing function



Housing

Frost

High temperature resistant, IP20

Linear frost (0-100%)



Net Weight

Effect Wheel

42.5Kg

1 graphic effect wheel, bi-directional rotation with varied speeds



Ambient Temperature

Focus

-20°C45°C

0-100% linearly adjustable by DMX



Accessories

Dimmer

G clamp 2 Pcs

Linear dimmer 0-100%

XLR connector 1 Set Male and female

3 dimmer speeds

Safety cord 2 Pc

4 dimmer gamma curves

User manual 1 Pc

Dimmer frequency(1.2K~2.5K) good for high speed 4K video camera

Ω clamp 2 Pcs Optional



Iris


Linear iris 5-100% with macros




Strobe


Double shutter blades, 0.3~25 F.P.S
