Input voltage |
Beam angle |
||
|
200V~240V AC，50/60Hz |
linear zoom 6°-50° with 16 bit function (open hole) |
||
|
linear zoom 5°-40° with 16 bit function (Gobo effective size) |
|||
|
Input power |
Control | ||
|
750W@220V AC |
International standard DMX512, 5 pin interfaces |
||
|
RDM control protocol |
|||
|
Light source |
27 channels in short mode ,30 channels in standard mode |
||
|
500W White LED(8000K, 20000hrs), Ra≥70(Optional: Ra≥90) |
and 45 channels in extended mode | ||
|
Master/Slave synchronized mode |
|||
|
Stand-alone mode |
|||
|
CTO |
Other function |
||
|
0-100% linear CTO |
Total hours displayable |
||
|
English and Chinese menus |
|||
|
Prism |
Built-in sensor diagnostic system |
||
|
1pc of 3 facet circular prism |
Software versions displayable |
||
|
Bi-directional rotation with variable speeds and indexing function |
Input signal isolation |
||
|
Modular Structure for easy maintenance |
|||
|
Frost |
Housing and ingress protection |
||
|
1pc frost filter, linear frost effect( 0%-100%) |
High temperature ABS+ High tensile cast aluminum , IP66 |
||
|
Effect wheel |
operation temperature |
||
|
1pc, bi-directional rotation with variable speeds |
Highest ambient temperature 45°C | ||
| Note: If the ambient temperature is below -20°C | |||
|
Focus |
reset a projector before pre-heating it for more than 30 minutes | ||
|
DMX linear Focusing |
|||
|
Dimmer |
Tilt movement | ||
|
0-100% Linear adjustment |
Tilt: 140° | ||
|
Strobe |
Net weight |
||
|
Electronic strobe, 0.3~25 F.P.S |
27.5Kg |
||
|
|
|||
| CMY | |||
|
CMY linear mixing system with macros |
|||
| 1 Color Wheels | |||
|
1 color wheel: 7 colors+ Open |
|||
|
Half color effect, rainbow effect with bi-directional and variable speeds, |
|||
|
Stepping/linear color changing |
|||
| Rotating Gobo | |||
|
1 Rotating Gobo Wheel: 8 replaceable gobos+ Open, Glass or Metal Gobo |
|||
|
Bi-directional Rotation with variable speeds |
|||
|
With Indexing Function |
|||
|
Gobo Shake Effect with Variable Speeds |
|||
| Bi-directional Scrolling with Variable Speeds | |||

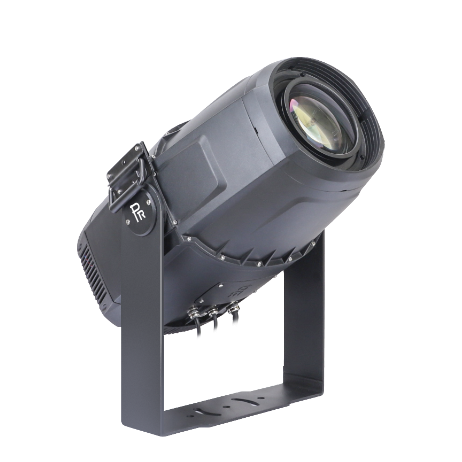

| Framing | |||
|
1 framing module rotates between 0° and 90° and produces graphics of different shapes and sizes |
|||
|
4 framing blades can produce full curtain effect |
|||
