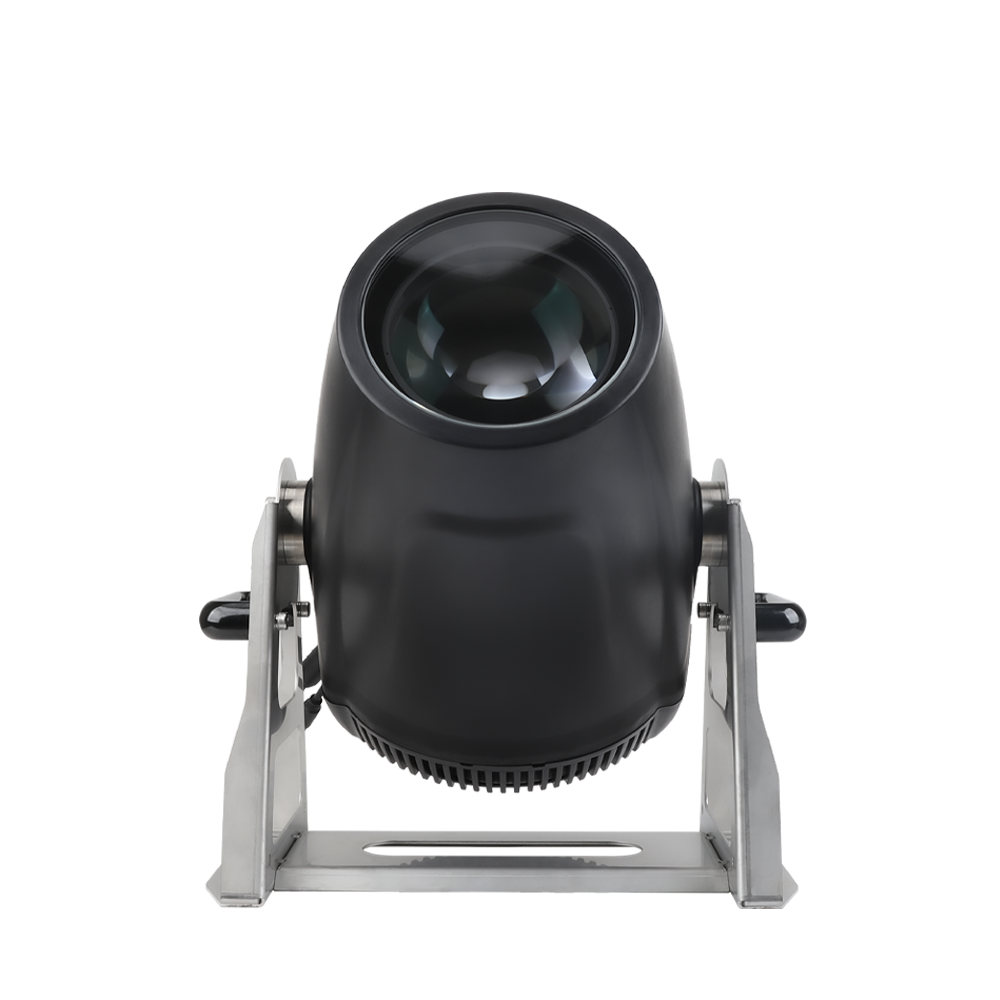

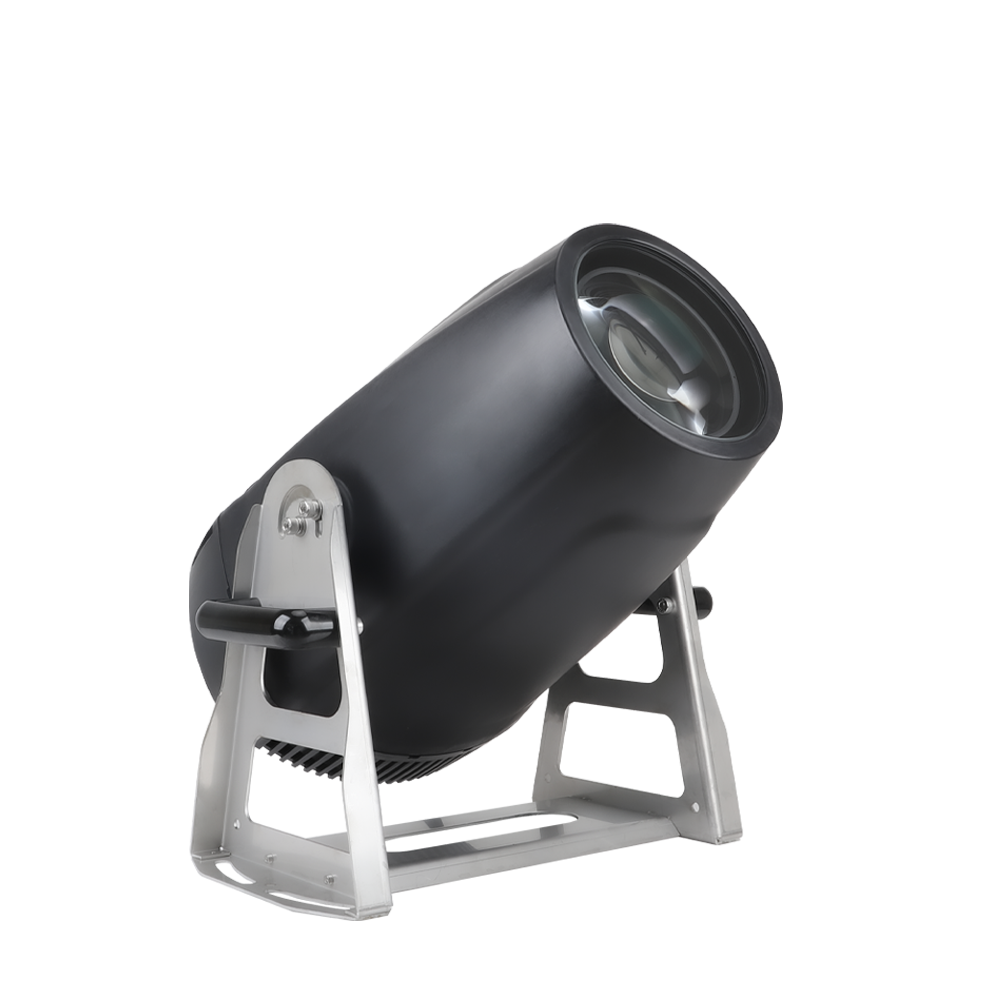

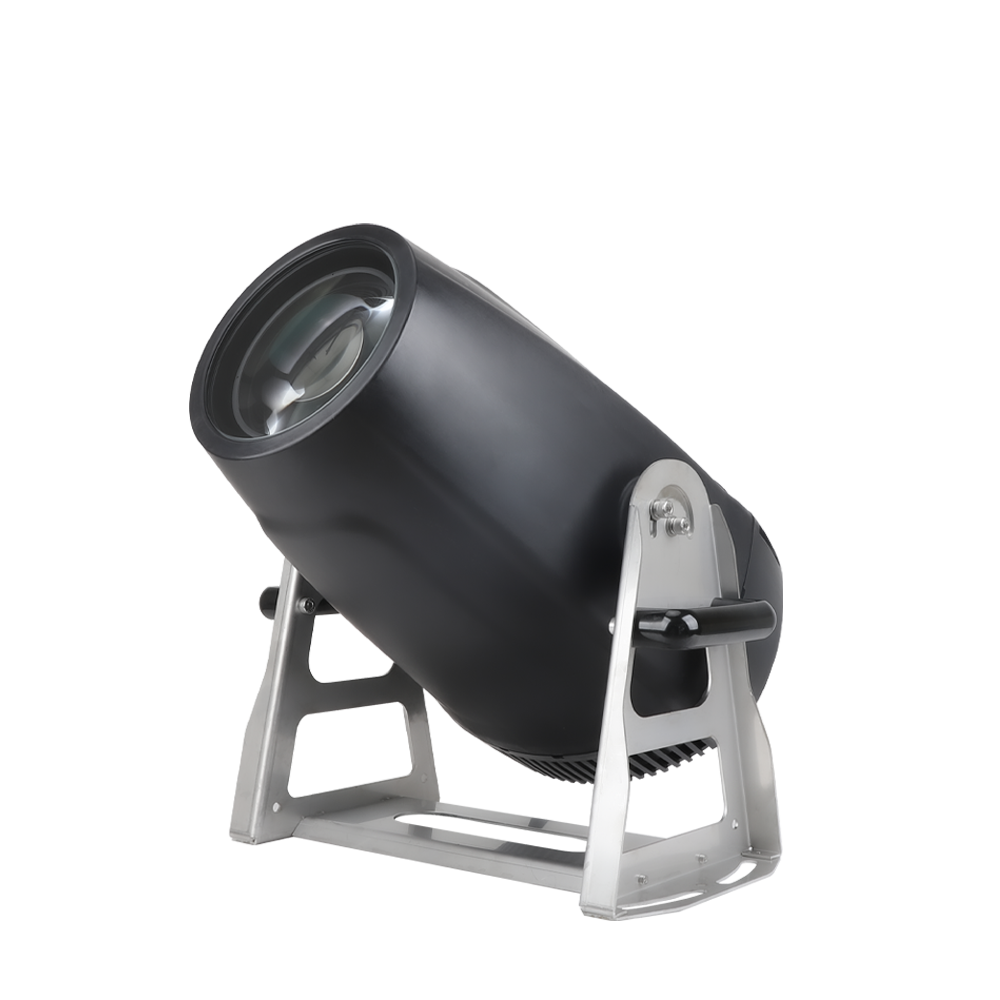

DRAGON 1600-W BWSF
Model No.PR-6517
DRAGON 1600-W BWSF

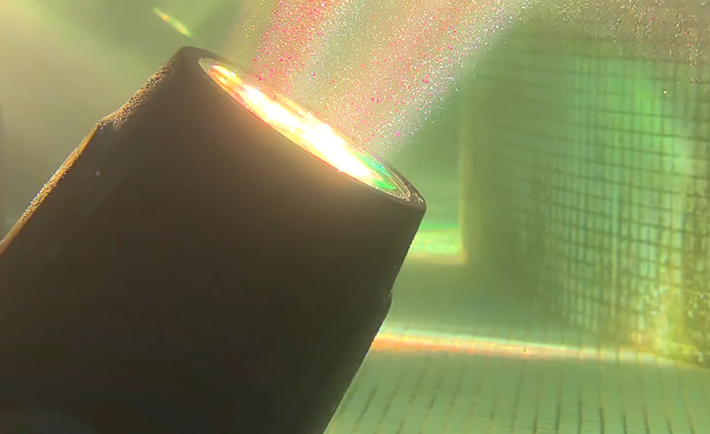

DRAGON 1600-W BWSF(four in one) is an underwater fixture with Beam, Spot, Framing and Wash functions using a 700W white LED engine as its light source, the 1st product of the industry and filling a maket gap. It is very powerful , energy saving and environmentally frienldy with high illuminance, silent operation, compact size, long lifespan, low luminous decay and efficient cooling.Designed to meet very intensive beam requirement for underwater operation, it has beam angle from 5° to 60° with CMY, CTO, color wheel, rotating gobos,full curtain function by framing blades , 360° continually rotating framing module, prism, frost filter and other functions . Underwater, it creates cubic effects like a kaleidoscopic as if descending into a dim abyss, while dynamic water ripples project undulating patterns into the air, evoking a serene and mesmerizing atmosphere. Utilizing an internal air contracting and expanding theory, it ensures long lifespan and safety. Incorporating multiple patented technologies from PR Lighting, it is suitable for underwater up to a maximum depth of 5 meterswith an ingress protection of IP68 . The product is ideal for underwater applications in Landscaping, entertainment, cultural tourism, and similar underwater places.
Features
COLORS
GOBOS
FRAMING
Download
TECHNICAL DATA
The product is with a separate power supply unit.
1)The underwater head
Input voltage: DC 48V
Ingress protection:IP68 (for underwater running)\
Electric shock protection class: III class lighting fixture( Safe low voltage/SELV, no electric shock)
Standards: as per IEC 60598-1 and GB/T 50034-2024, DC 60V and lower is safe low voltage/SELV. And DC 48V is safe voltage and without electric shock under normal operation.
2)Power supply control box
Input voltages : 100V~240V AC,50/60Hz
Input Power :   800W @ 220V
Power factor :    PF〉0.95
Max. Current:  3.6 A @ 220V
Output voltage: DC 48V
Output current: 16.7A@48V/DC
Ingress protection:IP66 (waterproof for outdoor application, not for underwater running)

LIGHT SOURCE SPECIFICATIONS(Yellow)
Power consumption :  700W, White LED module
Color Temperature :   8000K
Manufacturers Rated Lamp Life : more than 20000hrs
CRI : Ra≥70 (Optional high CRI version Ra≥96,R9≥95)

CTO
Linear CTO system(0-100%, 1800K - 6500K)

EFFECT WHEEL
Bi-directional rotation at variable speeds

IRIS
5-100% linear with macros

PRISM
1pc, 3-facet circular prism, bi-directional rotation at variable speeds with indexing function

FROST
1 frost filter ,0-100% linear

BEAM ANGLE
5°~60°,linear with 16 bit control

FOCUS
DMX linear with auto focus function

DIMMER
Linear electronic dimmer 0-100% with 16 bit control
3 dimmer speeds
5 dimmer curves
Dimmer frequency(1.2K-25K) good for 4K high speed video camera
STROBE
Electronic strobe 0.3~25 Hz, optional pulse, synchronized or non-synchronized strobe at slow, medium and fast speeds

HEAD MOVEMENT
Tilt: ±100°

ADVANCED MACROS
Color temperature macros: optional 2700K,3000K,3500K,4000K,4500K,5000K,5700K
Standard color macros: 89 color options based on standard color chart

BRIGHTNESS CALIBRATION FUNCTION
With brightness calibration function to calibrate initial brightness for a single fixture or multiple ones and store brightness
values into the fixtures

CRI MODE
Running at high CRI mode via DMX channel to ensure high CRI optical effect.

CONTROL
International standard DMX512 signal and RDM function
32channels in short mode, 38channels in standard mode,51channel in extended mode
Master/Slave mode
Standalone mode
Master Mode

CONTROL INTERFACE
DMX512 ports(5-pin)

OTHER FUNCTIONS
Modular construction for easy maintenance,
DMX channel voltages monitoring
Firmware upgrade via DMX cable

HOUSING AND INGRESS PROTECTION
The housing of the head: ABS or stainless steel, IP68 , for landscape, entertainment ,cultural tourism and other underwater applications.
The material for power supply control box: Aluminum, IP66, installed in safe areas, forbidden for underwater applications

AMBIENT TEMPERATURE
The head : the depth under water ≤5m , the temperature of water 0℃~40℃
The power supply control box: -20℃~40℃

WEIGHT
Net weight of the head 23KG
Net weight of the power supply control box 7KG
Gross weight in the carton:33KG( head+ power supply control box)


Cardboard box(mm)(L*W*H)
515*515*620( 1pc/case )



【Version:20260610】

CMY color mixing system with macros
1 Color wheel: 7colors+ Open,
Half color , bi-directional rainbow effect at variable speeds,
Stepping/linear color  changing

ROTATING GOBO WHEEL
1 Rotating gobo wheel: 8Rotating Gobos +Open
Bi-directionally rotatable, and shakable at variable speeds
Gobo Replaceable, Gobo diameter: Φ24mm ,Gobo image diameter: Φ18mm

FIXED GOBO WHEEL
1 fixed gobo wheel(optional):4 fixed Gobos + Open
Bi-directionally rotatable, and shakable at variable speeds

1 Framing Module: 4 Framing Blades
Framing Module continual(360°) rotation with many graphics of different sizes and shapes
4 Framing blades to make full curtain effect
