AQUA Marine 580 Beam
Model No.PR-2568

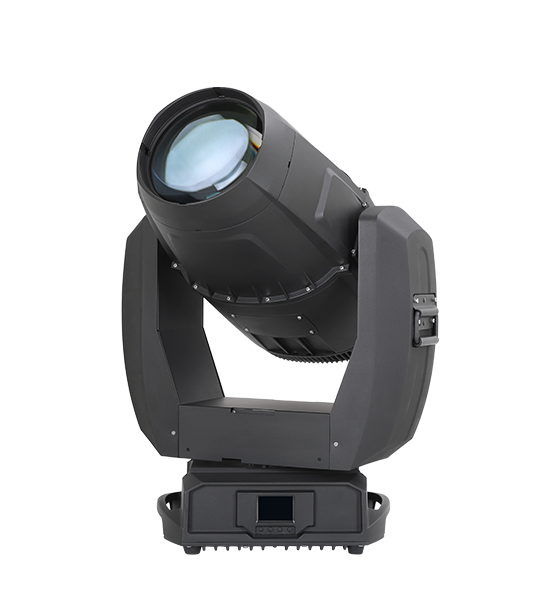

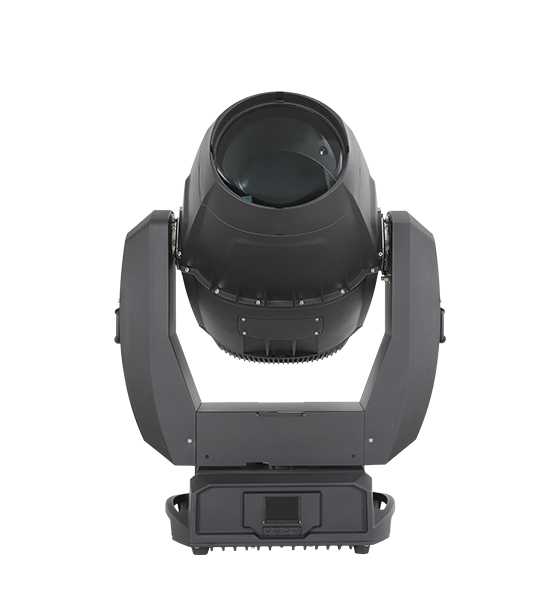

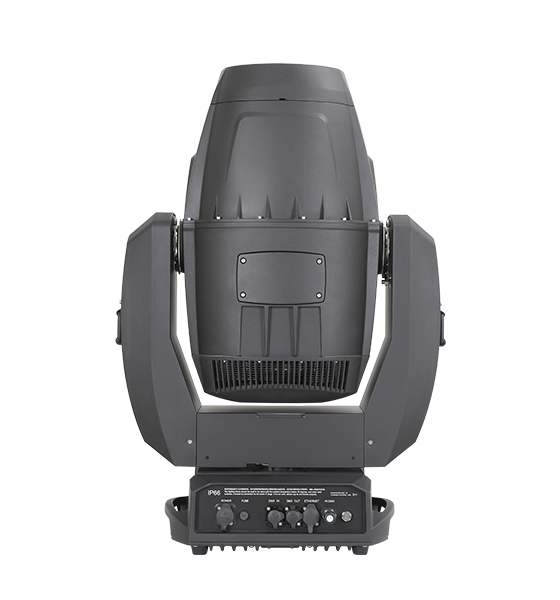

AQUA Marine 580 Beam
Corrosion-Resistant versions of AQUA 580 Beam, AQUA Marine 580 Beam can provide superior resistance to a wider range of corrosive media, making them ideal for use on projects close to the seashore or in seawater.
Features
Colors
Gobo
Download

Input Voltages

Control

100-240V AC, 50/60Hz

International DMX512, 5 pins(optional 3 pins) interface

RDM control protocol

Power Consumption

Short mode 22 channels, standard mode 26 channels and extended mode 30 channels

800W@220V

Self-test mode



Light Source

Other Functions

PHILIPS MSD Platinum 25R (550W), (7,800K, 1,500 hrs)

Adjustable pan & tilt speed

Optional: OSRAM SIRIUS HRI 550W XL, (7,500K, 1,500 hrs)

LCD display screen


Fixture and lamp usage time display

Strobe

Modular structure for easy maintenance

Double shutter blades, 0.3-25 F.P.S

DMX512 wireless receiver


DMX512 wireless transmitter(optional)

Dimmer


0-100% linearly dimming

hysical


Housing: cast aluminum and high temperature UV resistant ABS, IP66

CTO

Ambient temperature: maximum 45°C

Independent 0-100% linear CTO



Weight

Prism/Frost

Net weight: 40Kg

Three prisms(standard: 8-facet circular+4-facetlinear+16-facet circular prisms),


bi-directional rotation with variable speeds,1combined frost filter

Packaging

Standard: 815x725x700(mm)

Focus

Optional: flight case

DMX linear focus



Accessories

Head Movement

G clamp, 2 pcs

Pan 540°, tilt 270° with auto position correction

5 Pins XLR connector, 1 set


Safety cord, 1 pc

Light Angle

Power cord, 1 pc

Beam angle: 2°
Optional: Ω clamp, 2 pcs








CMY


CMY linear color mixing system with macros







Color Wheel


1 Color wheel: 12 dichroic color filters plus open



Rainbow effect with bi-directional and variable speeds

Stepping/linear color changing




Fixed Gobo



1 Fixed gobo wheel: 18 gobos plus open



Bi-directionally rotatable, and shakable effect at variable speeds







Rotating Gobo



1 Rotating gobo wheel: 7 interchangeable gobos plus open


Bi-directionally rotatable, and shakable at variable speeds







Name
Description
Download
Specification
AQUA Marine 580 Beam
User manual
AQUA Marine 580 Beam
Lighting Library
MA2,Avolites
