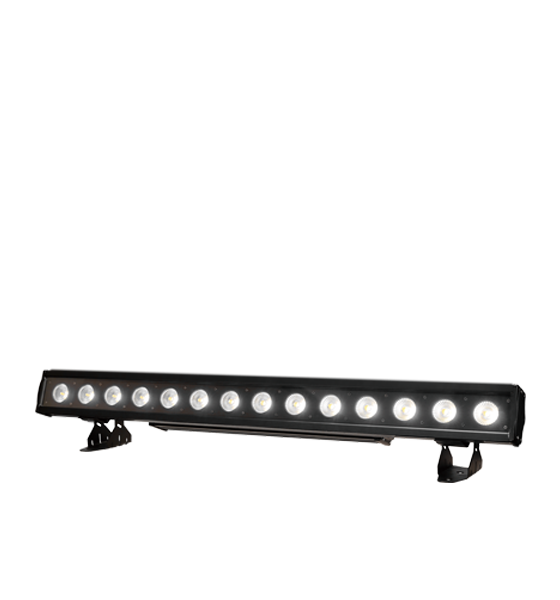

JNR BAR 14x30
Model No.JNR-8019A/B
JNR BAR 14x30
Features
Colors
Download
  • Light Source

    Channels

    JNR-8019A 14x30W LEDs(4-in-1 RGBW), 50,000 hrs4/5/6/10/33/42/56/61 DMX channels(JNR-8019A), 2/3/5/8/42/44 DMX channels(JNR-8019B)
    JNR-8019B: 14x30W LEDs(3-in-1 RGB) , 50,000 hrs




    Other Functions

    Input Voltages

    Stunning light output with high intensity and high color rendering index
    AC90-260V 50/60Hz




    Interface

    Power Consumption

    IP65 rated lockable power connectors IN/OUT, IP65 rated lockable 3-pin XLR DMX connectors IN/OUT
    200W




    Housing

    Strobe

    Die-cast aluminum alloy, compact
    25T/s high speed LED shutter/strobe effect with variable speed
    IP65




    Dimmer

    Net Weight

    0-100% smooth linear electronic dimmer
    6.96kg




    Effect



    Dynamic macro effect with variable speed




    Light Angle



    High efficiency 40mm PMMA optics, 15°/25° /55° beam angles as optional





    Head Movement



    Manual controllable for tilt angle adjustment




    Control



    DMX512, master-slave and sound activated controllable or auto operation








    • Color System

      16.7 millions of colors by mixing


      12 Internal color running programs, available for strobe effect together


      13 DIY internal color running programs with background, foreground colors changeable,available for strobe effect together











Name
Description
Download
Specification
JNR-8019A/B
User manual
JNR-8019A
Lighting Library
MA2,Avolites
