JNR DRAGON 3610
Model No.JNR-8061

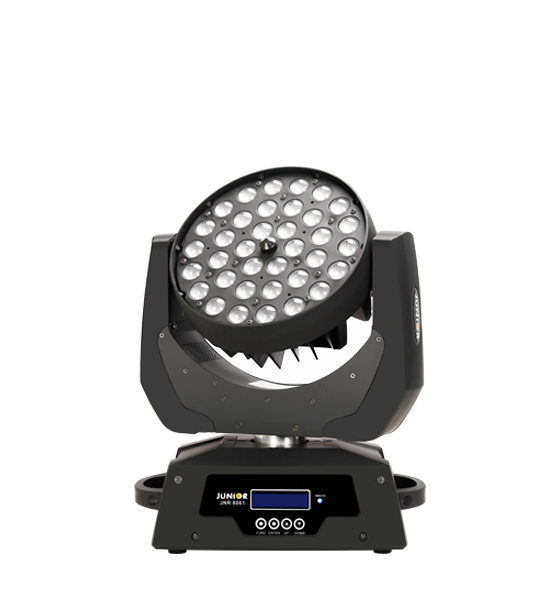

JNR DRAGON 3610
The Dragon 3610 is featuring a motorized linear zoom from 8° to 60°and 36 PCS 10W 4-in-1 LEDs. It offers completely smooth color mixing, through the specific optic system of highly efficient elements. It emphasized dynamic array of try colors and hues.
Features
Colors
Download
    • Light Source

      Channels

      36x10W LEDs(4-in-1, RGBW), 50,000 hrs14 DMX channels USITT DMX-512



      Input Voltages

      Other Functions

      AC90-260V 50/60Hz

      Blue LCD display, wireless control(optional)




      Power Consumption

      Housing

      210W
      High temperature engineering plastic


      IP20

      Strobe:



      High speed strobe effect with 1-18 flashes per secondNet Weight


      9.18kg

      Dimmer



      0-100% smooth linear LED dimmer(general dimming and blackout for all four colors)




      Effect


      LED rainbow effect, macros effect




      Light Angle



      8°~60°






      Head Movement



      8/16 bit smooth and precise resolution for pan 540° /tilt 270° movement






      Control



      DMX512, master-slave, and sound activated controllable or auto operation




      • Color System

        Amazing RGBW color mixing

        High light output with 1130LUX(8°) and 320LUX(50°) @5M at full RGBW


        LED rainbow effect, macros effect






















Name
Description
Download
Specification
JNR-8061
User manual
JNR-8061
Lighting Library
MA2,Avolites
