JUNIOR
JNR BLINDER 4x100
Model No.JNR-8146C/W

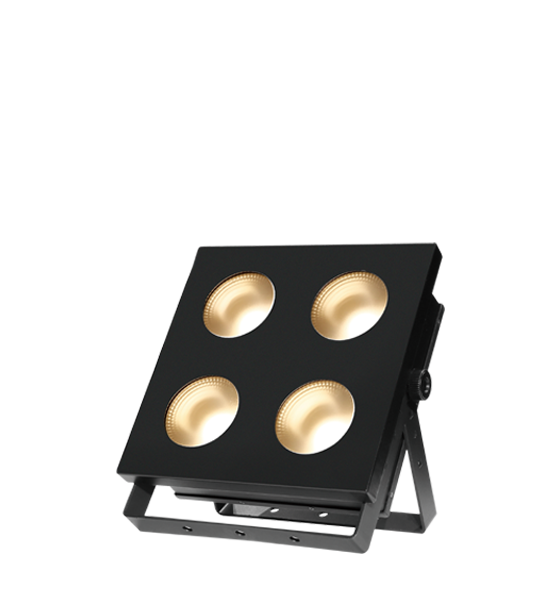

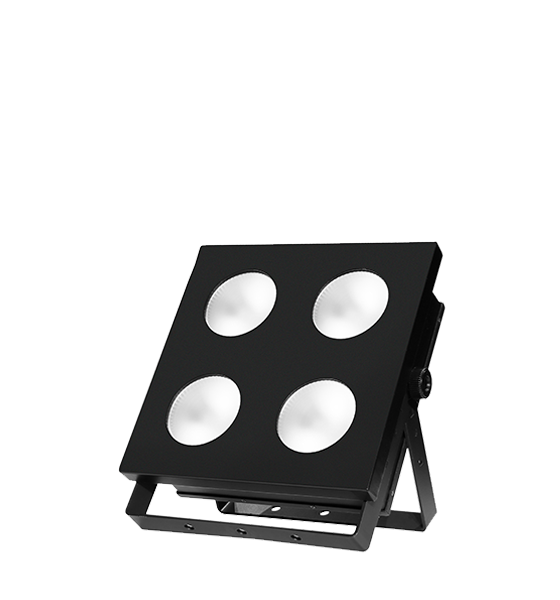

JNR BLINDER 4x100
The JNR BLINDER 4x100 C/W is a specially new flicker free design for studio applications, featuring four warm white (3200K) or pure white (5600K) COB LED modules,fitted in a 30°beam angle optic system ( 100°field angle).
Features
Colors
Download
  • Light Source

    Other Functions

    JNR-8146C: 4x100W (5600K, pure white) COB LEDs, 50,000 hrsIndividual control for each COB module
    JNR-8146W: 4x100W (3200K, warm white) COB LEDs, 50,000 hrsCRI: Ra≥90(JNR-8146W)





    Input Voltages

    Interface
    AC90-260V 50/60Hz

    Power connectors IN/OUT, 3-pin XLR DMX connectors IN/OUT




    Power Consumption

    Housing
    330W(8146C)/ 340W(8146W)

    Black metal


    IP20

    Strobe


    25T/sec high speed LED shutter/strobe effect with variable speedNet Weight


    5.92kg

    Dimmer



    0-100% smooth linear LED dimmer





    Effect



    Different built-in programs and macro effects



    Light Angle



    Field angle: 100°, beam angle: 30°





    Control



    DMX512, master-slave and sound activated controllable or auto operation




    Channels



    4/8 DMX channels USITT DMX-512








  • Color System

    Warm white/ pure white

















Name
Description
Download
Specification
JNR-8146C/W
User manual
JNR-8146C/W
Lighting Library
MA2,Avolites
