JUNIOR
TRIANGLE
Model No.JNR-8277
TRIANGLE

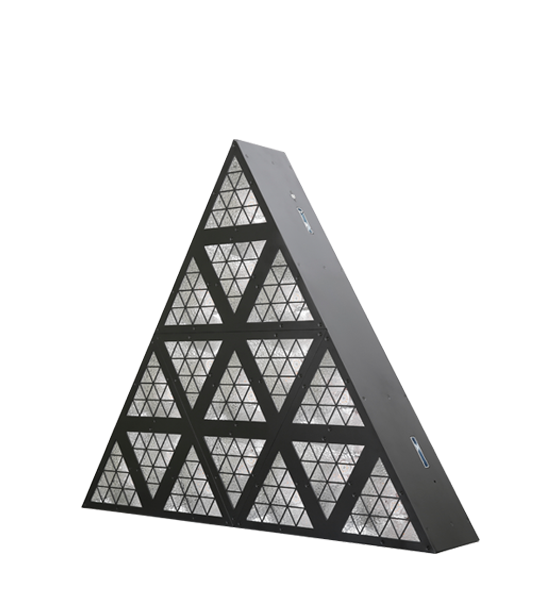

The TRIANGLE is an imperial lighting fixture that integrated with nice triangle housing design and tremendous visual effect. The lighting designers could combine each fixture together, the more fixtures combined, the more vivid lighting effects.
Features
Colors
Download
      • Light Source

        Other Functions

        TRIANGLE A(JNR-8227A): 16*30W LED modules(1800K), 576*0.3W (RGB 3 IN1) SMD LEDs 50,000 hrsRDM, Art-NET
        TRIANGLE B(JNR-8277B): 16*30W LED modules(1800K+3200K), 576*0.3W SMD LEDs(4500K), 50,000 hrs



        Interface

        Input Voltages

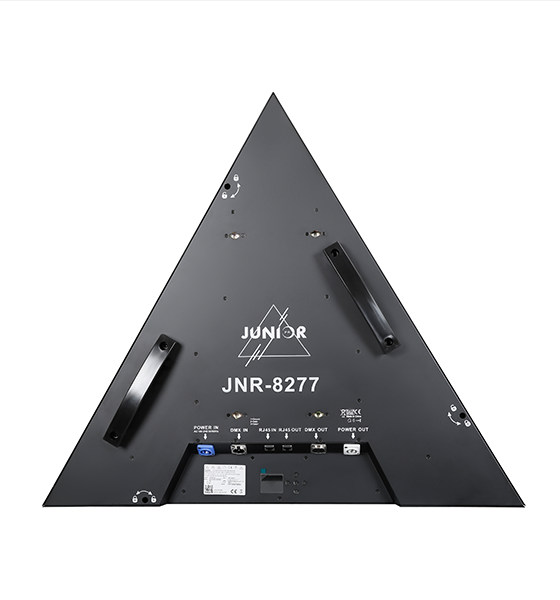

        Power connectors IN/OUT, 3-pin XLR DMX connectors IN/OUT
        AC100-240V 50/60Hz




        Housing

        Power Consumption

        Skeleton made of high tension steel metal plates
        850W

        IP20




        Strobe

        Net Weight
        25T/sec high speed shutter/strobe effect with variable speed14kg




        Dimmer



        0-100% linear LED dimmer, 4 dimming curve modes, linear/square law/Inv square law/S-curve




        Effect



        16 LED modules controllable individually



        Light Angle



        60° beam angle for each module




        Control



        DMX512, master-slave and sound activated or auto operation




        Channels



        7/67/97(TRIANGLE A), 8/83/113(TRIANGLE B) DMX channels modes






      • Color System

        RGB mixing capability, 1800K golden coverage(TRIANGLE A)




        Color Temperature


        4500K surrounding effect, 1800K-3200K color temperature tunable by mixing(TRIANGLE B)


















Name
Description
Download
Specification
JNR-8277A/B
User manual
JNR-8277A
