JNR PAR 54X3
Model No.JNR-8161D

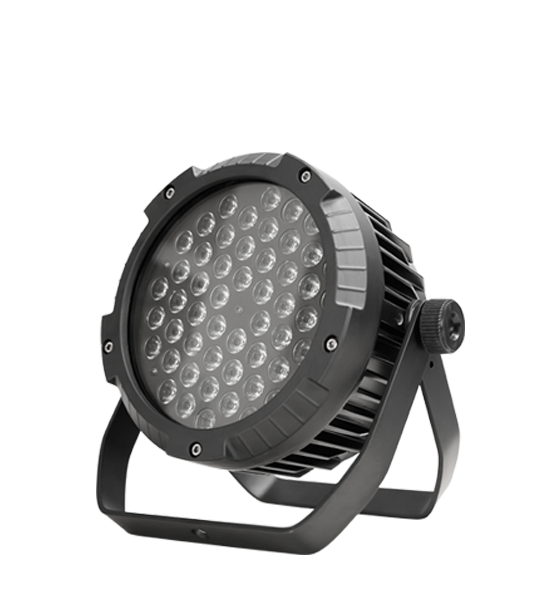

JNR PAR 54X3
The JNR PAR 54x3 adopts 54 PCS high power 3W LEDs (RGBW) which features high brightness and stability. It is made of a new type of high temperature strength of cast aluminum casing with IP65 rating.
Features
Colors
Download
Light Source

Channels

54x3W LEDs (12R+18G+18B+6W), 50,000 hrs
8 DMX channels USITT DMX-512



Input Voltages

Other Functions

AC90-260V 50/60Hz

Automatic operation with built-in programs, efficient low noise cooling system



Power Consumption

Housing

100W
Aluminum die-casting structure design with optimum conventional cooling system


IP65

Strobe



High speed white color or color changing strobe with 1-13Hz frequency rangeNet Weight


4.0kg

Dimmer



0-100% electronic dimming



Light Angle



25°




Control



DMX512, master-slave and sound activated controllable or auto operation























  • Color System

    RGBW color mixing system










































Name
Description
Download
Specification
JNR-8161D
User manual
JNR-8161D
Lighting Library
MA2,Avolites
