JUNIOR
JNR PAR 24x18
Model No.JNR-8135A

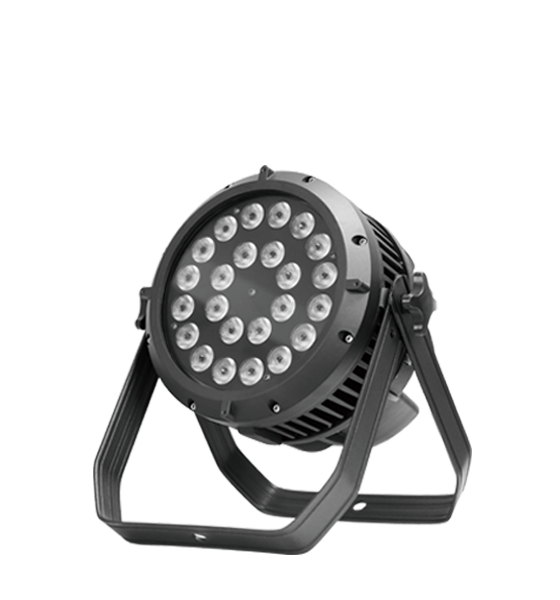

JNR PAR 24x18
The JNR PAR 24x18 adopts 24 PCS high power 18W LEDs is made of a new type of high temperature strength of cast aluminum casing with IP65 rating. It’s available independently controlled and linkable with each other for operation.
Features
Colors
Download
Light Source

Channels

24x18W LEDs (RGBAW+UV), 50,000 hrs
10 DMX channels USITT DMX-512



Input Voltages

Other Functions

AC90-260V 50/60Hz

Automatic operation with built-in programs, 8 built-in programs that could be called up via a DMX controller



Power Consumption

Housing

450W
Aluminum die-casting structure design with optimum conventional cooling system


IP65

Strobe



20t/s strobe effect and pulse strobe effectNet Weight


5.88kg

Dimmer



0-100% electronic dimming and blackout for all LEDs



Light Angle



25°




Control



DMX512, master-slave and sound activated controllable or auto operation























  • Color System

    Infinite RGB color mixing system and rainbow effect








































Name
Description
Download
Specification
JNR-8135A
User manual
JNR-8135A
Lighting Library
MA2,Avolites
