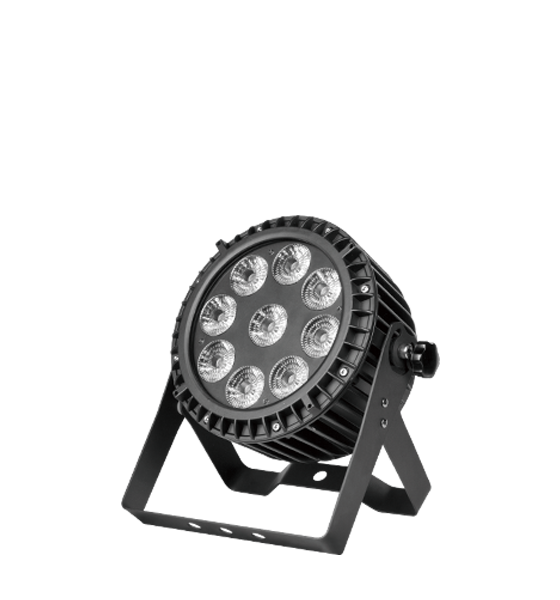

JNR PAR 9x15
Model No.JNR-8014
JNR PAR 9x15
The JNR PAR 9x15 adopts 9 PCS 15W 5-in-1 LEDs (RGBAW) is made of high temperature strength of cast aluminum casing with IP65 rating. It is designed and manufactured strictly following CE standards, complying with international standard DMX512 protocol.
Features
Colors
Download
Light Source

Channels

9x15W LEDs (5-in-1, RGBAW), 50,000 hrs
5/7/8 DMX channels USITT DMX-512



Input Voltages

Other Functions

AC90-260V 50/60Hz

overheat protection



Power Consumption

Housing

145W
Aluminum die-casting structure design with optimum cooling system


IP65
Strobe



High speed LED strobe effect and pulse strobe effectNet Weight


4.0kg

Dimmer



0-100% electronic dimming and blackout for all LEDs


Light Angle



25°




Control



DMX512, master-slave and sound activated controllable or auto operation


















  • Color System

    Infinite RGBAW color mixing system and rainbow effect


    16.7million additive RGBAW colors whit full saturation control
































Name
Description
Download
Specification
JNR-8014
User manual
JNR-8014
Lighting Library
MA2,Avolites
