JNR PANEL 912
Model No.JNR-8304

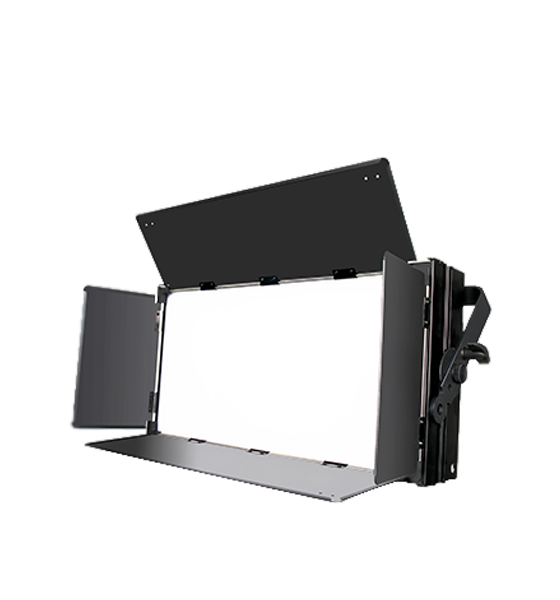

JNR PANEL 912
The JNR PANEL 912 adopts 912 PCS premium quality and high CRI LEDs(465 PCS Cool White+ 465 Warm White) which features high brightness and stability.
Features
Colors
Download
Light Source

Channels

912 pcs (456 pcs warm white and 456 pcs cool white), 50,000 hrs
3 DMX channels USITT DMX-512



Input Voltages

Connections

AC100-240V 50/60Hz

3-Pin XLR connectors IN/OUT


POWRECON connector IN/OUT

Power Consumption



100W
Other Functions


2.8" Touch TFT LCD display
Strobe

Fan-less no noise
1-25 times/sec


Housing
Dimmer

Die casting aluminum
0-100% Smooth and precise linear dimmerIP20




CRI

Net Weight

Ra≥954.97kg




Light Angle

Accessories

Auto zoom 15°-50°4-Leaf rotating barn doors included


1*Safety attachment point

Installation



Single hanging bracket





Control



DMX512, master-slave, and sound activated controllable or auto operation











  • Color System

    Color temperature: 3,000K~6,000K
