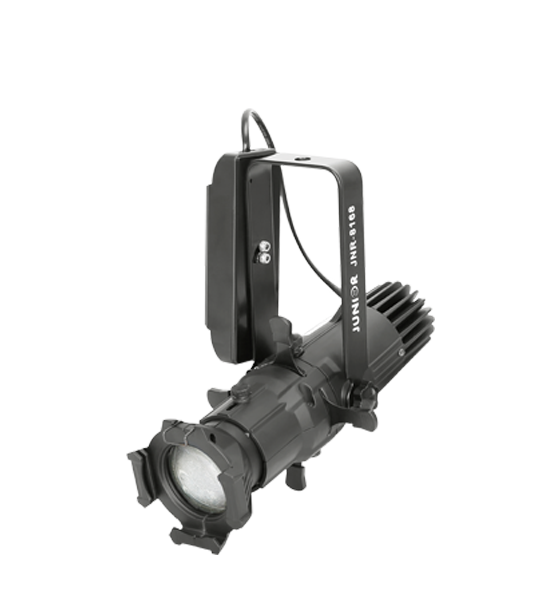

JNR MINI ELLIPSOIDAL 20C/W
Model No.JNR-8168A/B
JNR MINI ELLIPSOIDAL 20C/W
JNR MINI ELLIPSOIDAL 20C/20W is compact and lightweight illumination with high CRI ≥ 90, noise free and high speed shutter/ strobe effect available for live performances, theater, studio, nightclubs and discos.
Features
Colors
Download
Light Source

Channels

20W CITIZEN COB LEDs, 50,000 hrs
Remote controller for different operation functions
JNR MINI ELLIPSOIDAL 20C, JNR-8168A: 5600K


JNR MINI ELLIPSOIDAL 20W, JNR-8168B: 3200K
Other Functions


Smooth manual focus system

Input Voltages

Manual IRIS system as optional

AC90-260V 50/60Hz

Noise free conventional cooling with housing


Preset variable/random strobe and dimming pulse effect
Power Consumption



26W
Housing


Housing made by rugged, die cast aluminum alloy
Strobe

IP20
25T/sec high speed shutter/strobe effect with variable speed


Net Weight
Dimmer

1.12kg
0-100% Smooth and precise linear dimmer


Accessories

CRI

Portable (mini C-clamp), canopy-mount and track-mount versions as optional
Ra≥903 Metal spot cutting slots


Glass/Metal gobo slot as optional

Light Angle

Color frame as optional

Lens tube interchangeable with filed angles optional for 19°/26°/36°/50°




Installation



Thermally insulated knobs and single aluminum handle for installing





Control



DMX512, master-slave, and sound activated controllable or auto operation







  • Color System

    JNR MINI ELLIPSOIDAL 20C(JNR-8168A)cool white: 5600K


    JNR MINI ELLIPSOIDAL 20W(JNR-8168B)warm white: 3200K


    Color frame as optional






















Name
Description
Download
Specification
JNR-8168A/B
User manual
