JNR 7R Beam
Model No.JNR-8220L

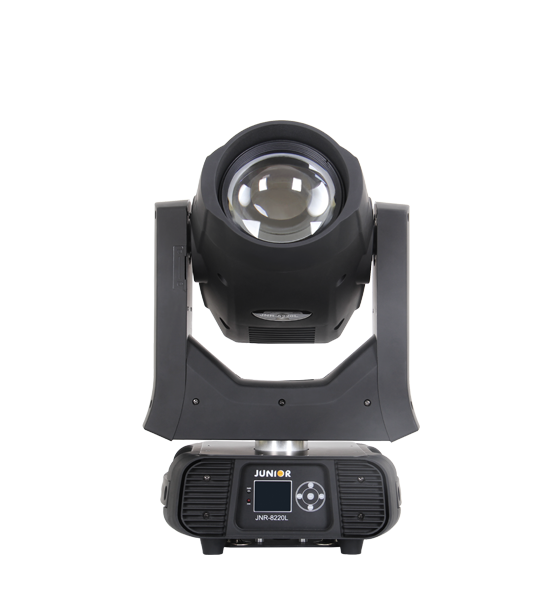

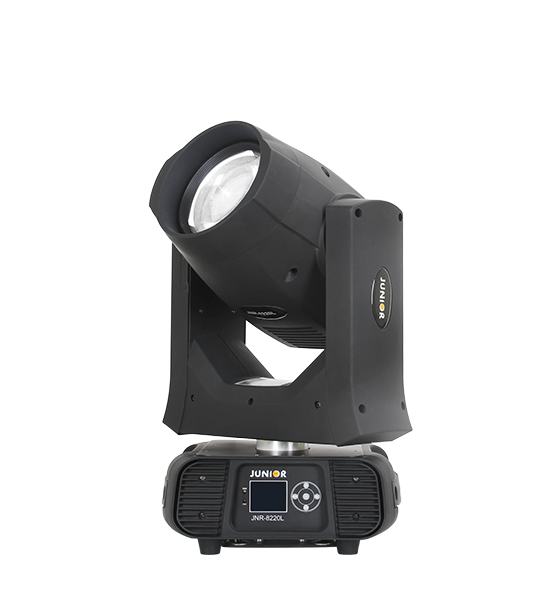

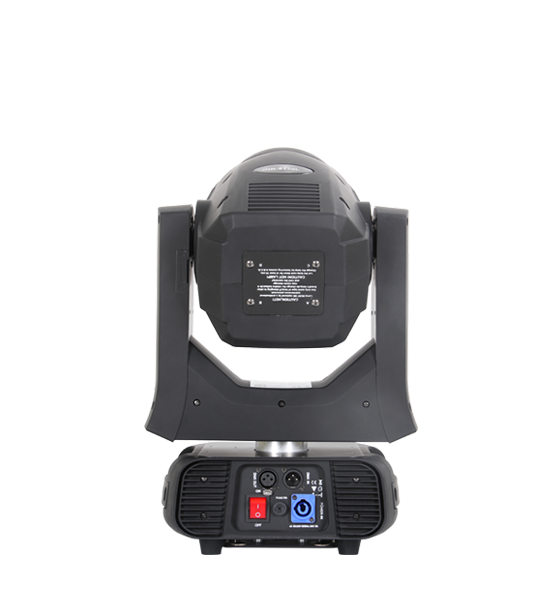

JNR 7R Beam
The JNR 7R BEAM is a stylish moving head beam in a very compact and lightweight housing. It delivers high light output and even coverage field. It features 230W Lamp.
Features
Colors
Gobo
Download
Light Source

Control

7R 230W lamp, 2000 hrs
DMX512, master-slave, and sound activated controllable or auto operation



Input Voltages

Channels

AC100-240V 50/60Hz

14/16 DMX channels USITT DMX-512




Power Consumption

Other Functions

350W
2.4” TFT LCD display with 4 light touch control buttons




Strobe:

Housing

20T/sec high speed shutter/strobe effect with variable speedEngineering plastics and cast aluminum


IP20
Dimmer



0-100% smooth linear mechanichal dimmingNet Weight


14kg
Prism



8-Facet, 16-Facet prism with variable speed and direction




Frost



Dual flag frost filer system (Hybrid effect for wash)





Light Angle



Beam angle: 2.5°






Head Movement



8/16 bit smooth and precise resolution for pan 540°/tilt 270° movement



Color Wheel

1 Color wheel with 14 colors plus open(half-way color mode available)


Variable direction rainbow effect with speed adjustable
















Fixed Gobo


1 Static gobo wheel with 17 gobos plus open




















Name
Description
Download
User manual
JNR-8220L
