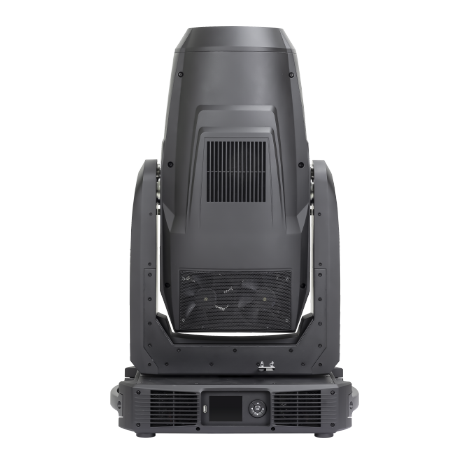

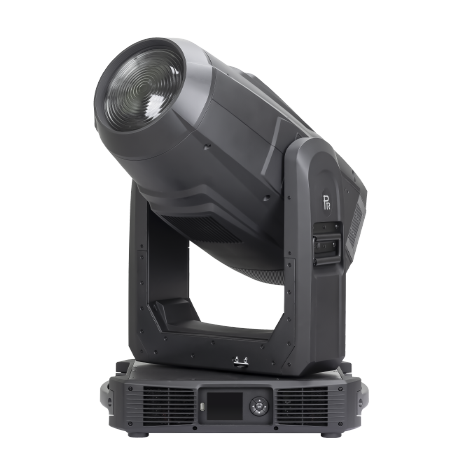

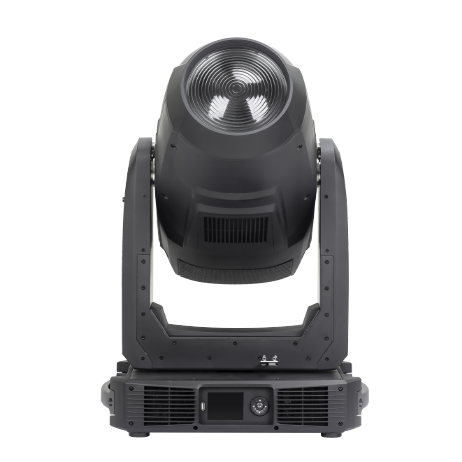

XRLED 3000-W  Wash/Framing
Model No.PR-8836
XRLED 3000-W Wash/Framing
XRLED 3000-W Wash/Framing is a moving head light with both Wash and Framing functions using 1200 W white LED engine. The energy saving and environmentally friendly brand LED engine makes high-quality light with both Ra and R9 above 95 for very good color rendition. It has patented and continually rotating framing module, brightness uniformity calibration, standard LEE color macros, multiple dimmer modes, very low noise and etc.
Features
Colors
Framing
Download

Input voltage

a single fixture or multiple ones and store brightness

100V-240V AC50/60Hz

values into the fixtures


Input power

CRI mode

1500W @ 220V

Running at high CRI mode via DMX channel to ensure high CRI optical effect



Light sources

Control

1200W white LED module (6900K)

International standard DMX512 signal and RDM function

CRI : Ra95R995, Lamp Life : 20000hrs

31channels in short mode, 35channels in standard mode,49channel in extended mode


DMX512 wireless control

Cto

Art Net protocolOptional

Linear CTO system(0-100%, 1800K-6500K)

sACN protocol(Optional)


Beam angle

Control Interface

1/2 θ(peak:7°~ 40°, with 16 bit precision

DMX512 ports5-pin

1/10 θ(peak:12°~ 60°, with 16 bit precision

Ethernet port RJ45



Focus

Other functions

Linear focus with auto-focus function

Pan and Tilt speeds adjustable,Pan and Tilt swappable and invertible


High precision magnet sensor for positioning

Dimmer

3.2-inch touch color screen, Chinese and English menus

Linear electronic dimmer 0-100% with 16 bit control

Screen automatic lock up while standby

3 dimmer speeds

Error diagnostic system with sensors

4 dimmer gamma curves

Smart fan cooling system

Dimmer frequency(1.2K-25K) adjustable, suitable for 4K high speed video camera

Display of fixture hours and software versions


Modular construction for easy maintenance

Strobe

Isolated input signals

Electronic strobe, 0.3~25 F.P.S, optional synchronized or non-synchronized strobe

Firmware update via DMX cable


Head movement

IP rating

Pan 540º, Tilt 270º with auto position correction and 16 bit control

IP20



Advanced macros

Operation temperature

Color temperature macros: optional 2700K,3000K,3500K,4000K,4500K,5000K,5700K

Ambient temperature at maximum45°C

Standard color macros: 89 color options based on standard color chart




Fan mode

Weight

Standard mode and theater modes.  Theater mode is quiet mode

Net weight 42 KG


Brightness calibration function


With brightness calibration function to calibrate initial brightness for











CMY


CMY linear coloring mixing system with macros






2 Color Wheels

Color Wheels 1Red, Green, Blue, Orange , Magenta, Light cyan,+ open



Color Wheels 2Dark Red, Amber, Camellia Red, Apple Green, Dark Magenta, UV+ open



Full color/half color/linear color



Bi-directional rainbow effect with variable speeds




Framing



1 Framing module



4 framing blades to make graphics with different sizes and shapes Framing module rotates


bi-directionally up to 360 °and continually, each framing blade produces full curtain effect
