| Input voltage |
Fixture types |
||
|
100V-240V AC，50/60Hz |

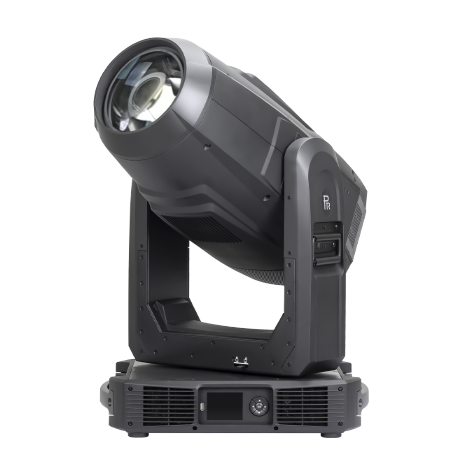

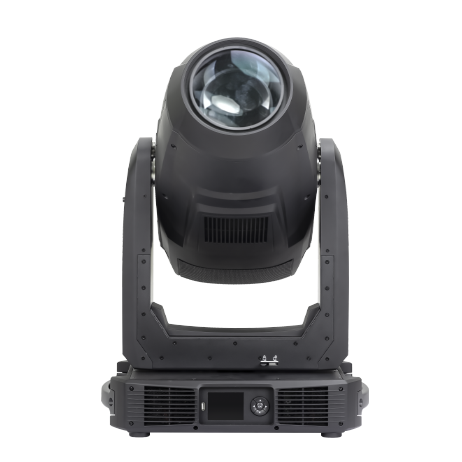

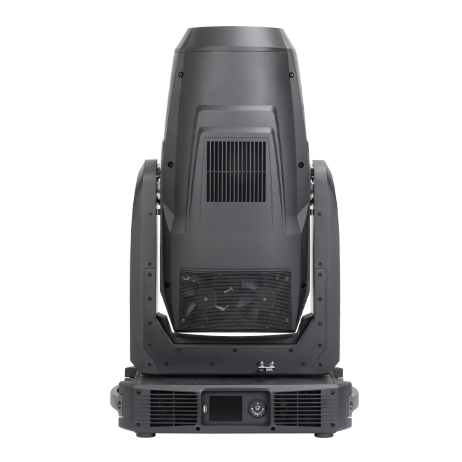

Including moving head light, fixed-focus profile light, zoom profile light |
||
|
Moving head light with beam angle range(5-50°) |
|||
|
Input power |
Fixed focus profile light with beam angle options including 5°,10°,19°,26°,36°,50° |
||
|
1900W@220V |
Zoom profile light with beam angle ranges including 5-15°,15-35°,35-50° |
||
|
(Note: Auto quiet theater mode for fixed focus profile light and zoom profile light) |
|||
|
Light sources |
|||
|
1500W white LED module(6500K, ≥20000hrs) |
Brightness calibration function |
||
|
With brightness calibration function to calibrate initial brightness for |
|||
|
Cto |
a single fixture or multiple ones and store brightness values into the fixtures | ||
|
Linear CTO system(0-100%, 1800K-6500K) |
|||
|
|
|||
|
Effect wheel |
CRI mode | ||
|
1 animation effect wheel, bi-directional rotation with varied speeds |
Running at high CRI mode via DMX channel to ensure high CRI optical effect. |
||
|
Iris |
Control |
||
|
Linear iris 5-100% with macros |
International standard DMX512 signal and RDM function |
||
|
47channels in short mode, 52channels in standard mode,67channel in extended mode |
|||
| Prism |
Art Net protocol , sACN protocol, DMX512 wireless control |
||
|
1pc of 4-facet circular prism+1 pc of linear prism, |
|||
|
bi-directional rotation with varied speeds with indexing function |
Control interface |
||
|
DMX512 ports(5-pin) |
|||
|
Frost |
Ethernet port RJ45 |
||
|
2 frost filters: 1 heavy frost filter + 1 light frost filter( 0-100% linear ) |
|||
|
|
|||
|
Beam angle |
Other functions | ||
|
Linear zoom5°～50°with 16 bit precision |
Pan and Tilt speeds adjustable |
||
|
Pan and Tilt swappable and invertible |
|||
|
Focus |
High precision magnet sensor for positioning |
||
|
Linear focus with auto-focus function |
Built-in rechargeable battery for control panel without mains power |
||
|
|
3.2-inch touch color screen, Chinese and English menus, |
||
|
Dimmer |
Screen automatic lock –up while standby |
||
|
Linear electronic dimmer 0-100% with 16 bit control |
Error diagnostic system with sensors, Smart fan cooling system |
||
| 3 dimmer speeds |
Display of fixture hours and software versions |
||
|
4 dimmer gamma curves |
Modular construction for easy maintenance, Isolated input signals |
||
|
Dimmer frequency(1.2K-25K) |
Firmware update via DMX cable |
||
|
|
|||
|
Strobe |
IP rating | ||
|
Electronic strobe, 0.3~25 F.P.S |
IP20 |
||
|
|
|||
|
Head movement |
Operation temperature |
||
|
Pan 540º, Tilt 270º with auto position correction and 16 bit control |
45℃ at Maximum |
||
|
|
|||
| Advanced macros | |||
|
Color temperature macros: optional 2700K,3000K,3500K,4000K,4500K,5000K,5700K |
Weight |
||
|
Standard color macros: 89 color options based on standard color chart. |
Net weight 47.8 Kg |
||
| Fan mode | |||
| Standard mode and theater modes. Theater mode is quiet mode | |||
