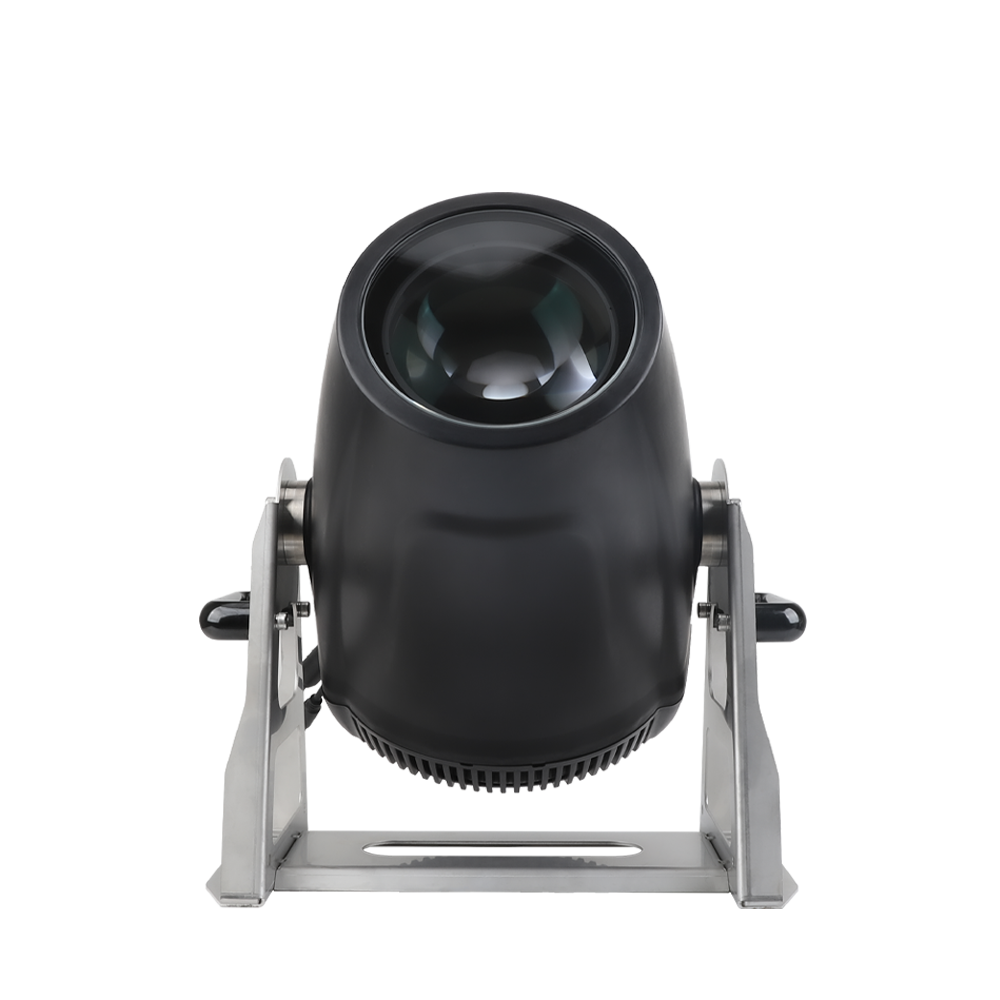

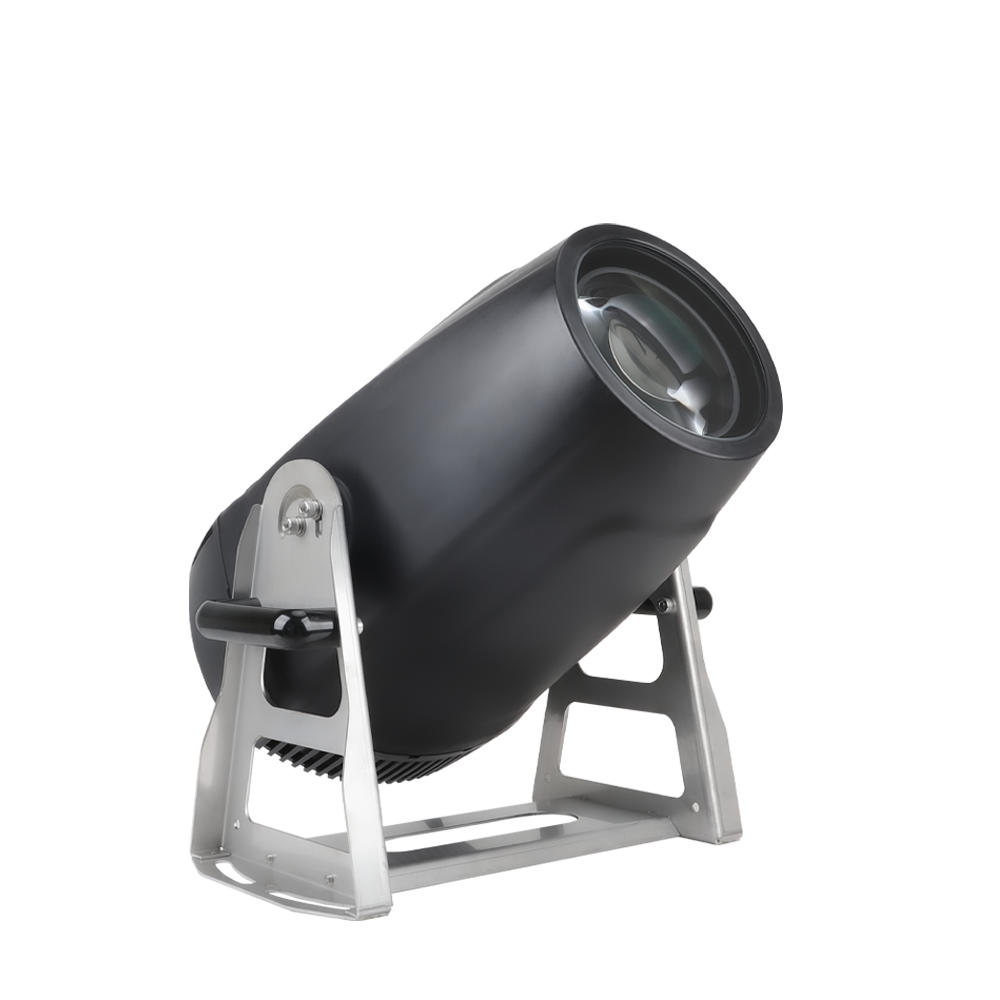

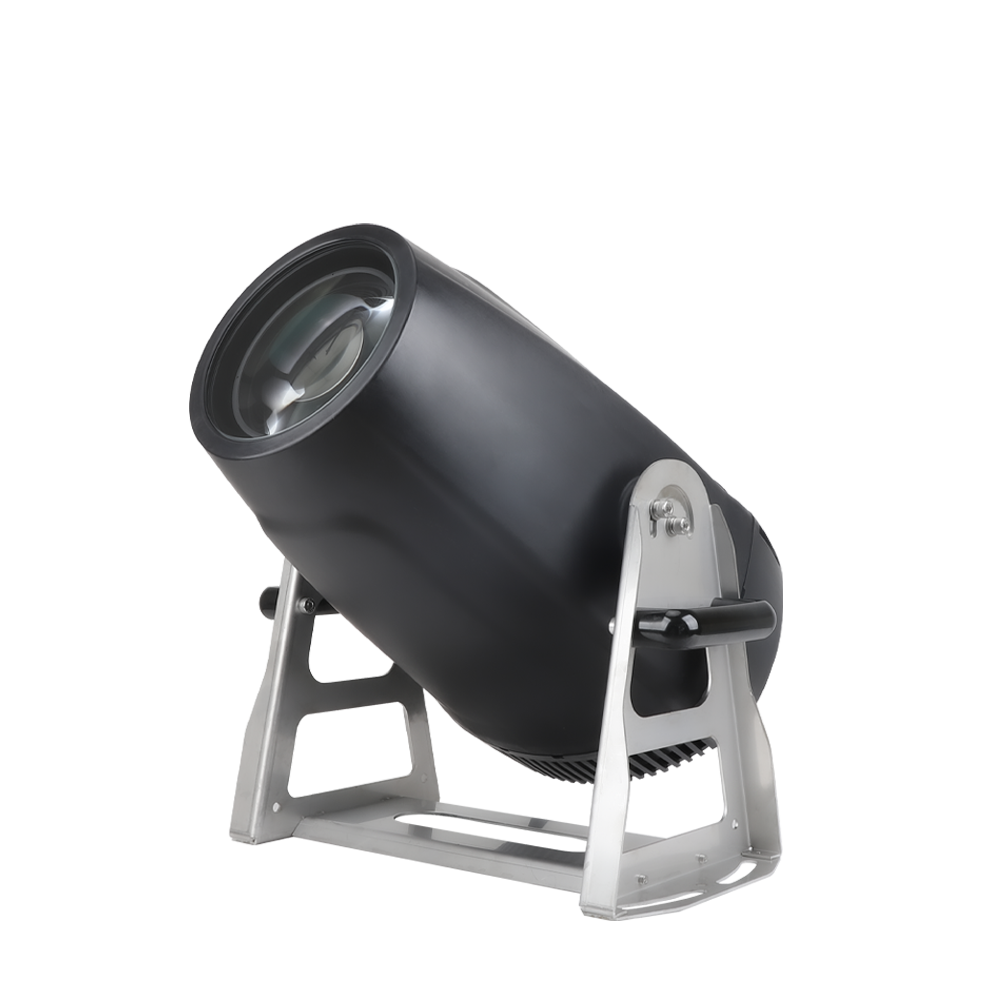

| THE PRODUCT IS WITH A SEPARATE POWER SUPPLY UNIT 1) The underwater head Input voltage: DC48V Ingress protection:IP68 (for underwaterrunning)\ Electric shock protection class:III classlighting fixture( Safe low voltage/SELV, no electric shock) Standards: as per IEC 60598-1 and GB/T 50034-2024, DC 60V and lower is safe low voltage/SELV. And DC 48V is safe voltage and without electric shock under normal operation. 2) Powersupply control box Input voltages: 100V~240VAC，50/60Hz Input Power: 550W@ 220V Powerfactor: PF〉0.95 Max.Current: 2.5A@220V Output voltage: DC48V Output current: 11.5A@48V/DC Ingress protection: IP66 (waterprooffor outdoor application,notfor underwaterrunning) LIGHT SOURCE SPECIFICATIONS(Yellow) Power consumption : 350W, White LED module Color Temperature : 9000K Manufacturers Rated Lamp Life : more than 20000hrs CRI : Ra≥70 CTO Linear CTO system(0-100%, 1800K - 9000K) EFFECT WHEEL Animation effects, bi-directional rotation at variable speeds PRISM 1pc, 3-facet circular prism, bi-directional rotation at variable speeds with indexing function FROST 1 frost filter ,0-100% linear BEAM ANGLE Beam and Spot modes: 4°- 40°, linear Wash mode : 5°- 45°, linear （with 16 bit control ） FOCUS DMX linear with auto focus function ZOOM Linear zoom DIMMER Linear electronic dimmer 0-100% with 16 bit control 3 dimmer speeds 5 dimmer curves Dimmer frequency(1.2K-25K) good for 4K high speed video camera |
STROBE
Electronic strobe 0.3~25 Hz, optional pulse, synchronized or non-synchronized strobe at slow, medium and fast speeds HEAD MOVEMENT Tilt： ±100° ADVANCED MACROS Color temperature macros: optional 2700K,3000K,3500K,4000K,4500K,5000K,5700K Standard color macros: 89 color options based on standard color chart. BRIGHTNESS CALIBRATION FUNCTION With brightness calibration function to calibrate initial brightness for a single fixture or multiple ones and store brightness values into the fixtures CRI MODE Running at high CRI mode via DMX channel to ensure high CRI optical effect. CONTROL International standard DMX512 signal and RDM function 20channels in short mode, 25channels in standard mode,29channel in extended mode Master/Slave mode Standalone mode Master Mode CONTROL INTERFACE DMX512 ports（3-pin, optional 5-pin） OTHER FUNCTIONS Modular construction for easy maintenance, DMX channel voltages monitoring Firmware upgrade via DMX cable HOUSING AND INGRESS PROTECTION The housing of the head: ABS or stainless steel, IP68 , for landscape, entertainment ,cultural tourism and other underwater applications. The material for power supply control box: Aluminum, IP66, installed in safe areas, forbidden for underwater applications AMBIENT TEMPERATURE The head : the depth under water ≤5m , the temperature of water 0℃～40℃ The power supply control box: -20℃～40℃ WEIGHT Net weight of the head 19.5 KG Net weight of the power supply control box 7KG Gross weight in the carton: 29.5KG( head+ power supply control box) Cardboard box(mm)(L*W*H) 515*515*620（1pc/case) |
| 【Version:20260606】 |
