XLED 1061
Model No.PR-8121
XLED 1061

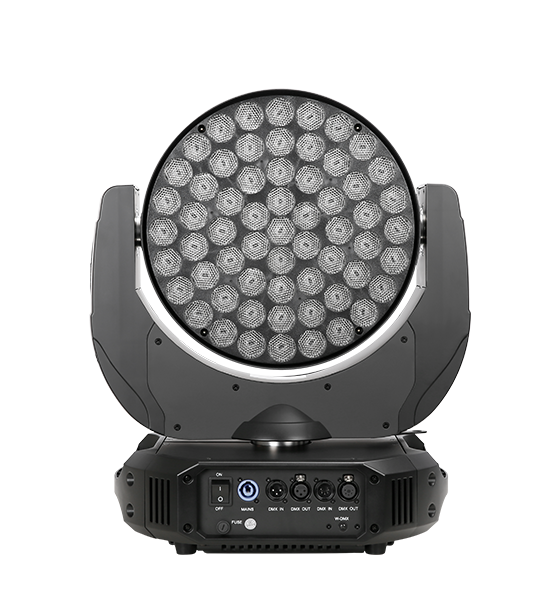

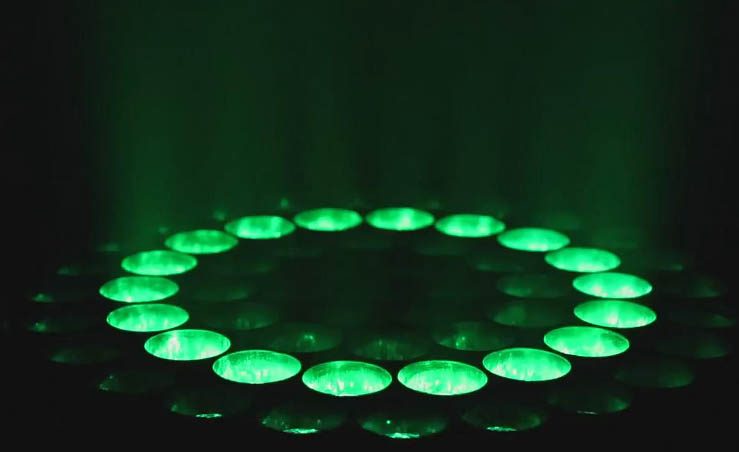

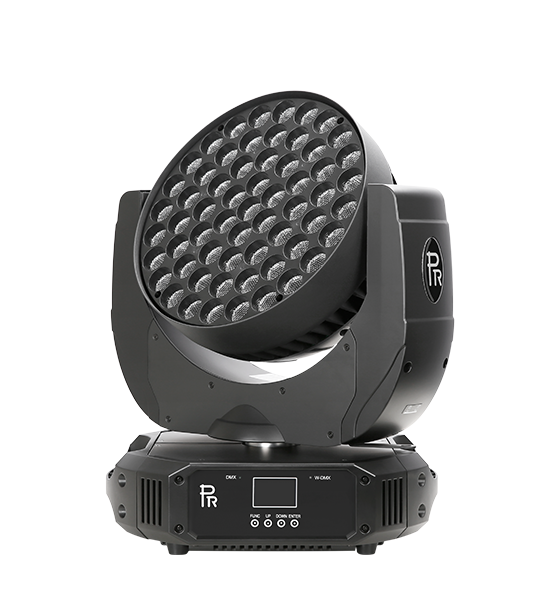

The XLED 1061 is a powerful LED wash moving head. It’s equipped with 61 pcs LEDs of 10 watts each RGBW 4 in 1. The color mixing of this unit is highlighted by animation effects, rainbow effects and pulse strobe. Delivering so much “bang for your money” it is certain to find a favorite place with LED and rental companies looking to derive maximum output and flexibility from a minimum footprint.
Features
Colors
Download
Light Source

Channels

CREE 61x10W LEDs(RGBW, 4 in 1), 50000 hrsStandard mode 17 channels and extended mode 30 channels



Input Voltages

Other Functions

100V~240V AC, 50/60Hz

DMX512 wireless receiver, (optional: DMX512 wireless transmitter)



Power Consumption

Housing

650W@220V

High temperature, ABS +die-casting aluminum


IP20
Strobe



Electronic strobe, 0-25 F.P.S, preset pulse strobe effect
Net Weight


20kg

Dimmer



0-100% linearly adjustable






Effect



Rainbow and animation effects



Light Angle



Beam angle(1/2 peak): 13°~52°, filed angle(1/10 peak): 30°~70°





Head Movement



Pan 540°, tilt 270° with auto-positioning




Control



DMX512, 5 pins(optional 3 pins) intereface






Color System


RGBW and color mixing, with macros






Color Temperature


Linear color temperature correction from 2,700K to 10,000K

















Name
Description
Download
Specification
XLED 1061 Spec
User manual
XLED 1061
Certificates
XLED 1061 CE
DWG
XLED 1061
Lighting Library
MA2,Avolites
