XLED 4019
Model No.PR-8124
XLED 4019

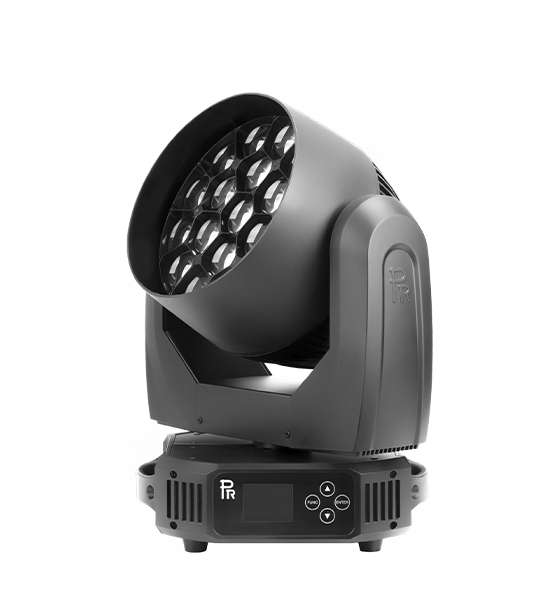

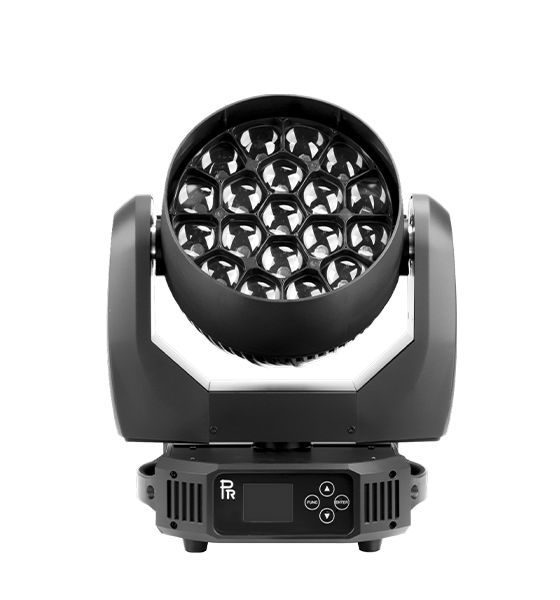

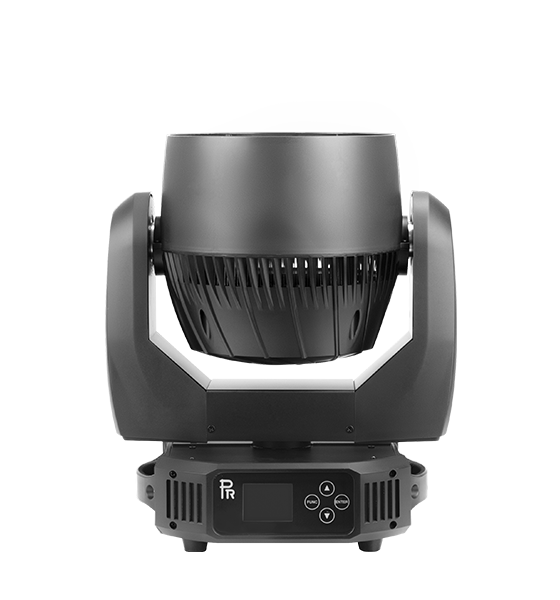

XLED 4019 is a LED fixture using 19 pcs of 40W RGBW LED as its light source and has the beam angle between 4° and 40°. Its beam is full and solid by imported ,high quality and hight efficacy brand LEDs and linear zoom meets wash requirements at different places. It has options for dimmer speeds, curves and frequencies with linear color temperature (1800K - 10000K).
Features
Download
Input Voltage

Control

100V~240V AC50/60Hz

International Standard DMX512 signal, 5 pin DMX512 interfaces


RDM protocol

Input Power

10 channels in short mode,18channels in standard mode

800W @ 220V AC

and 20 channels in extended mode

Power factor: PF〉0.9

Master/slave synchronized mode


Stand-alone mode, Preset mode, Single Scene mode

Light Source

DMX 512 Wireless control

LED lamp(40W RGBW, 19pcs, 50000hrs)

ArtNet and sACN(optional)



Head Movement

Other Functions

Pan:540°(16 bit control)

Color touch display, English/Chinese menus

Tilt: 270°(16 bit control)
Display auto-lock while standby to avoid unintended touch
Pan and Tilt invertible and

Pan and Tilt speeds adjustable

swappable with auto-positioning function

Pan and Tilt invertible and swappable


Over temperature protection

Colors

Fixture time and DMX 512 channel value displayed

RGBW linear color mixing with built-in macros

Software versions displayed, display invertible

Color Temperature  macros:

Sensor diagnostic system

optional 2700K3000K3500K4000K4500K5000K5700K

Intelligent fan cooling system

Color Macros89 color options included in standard color chart

Input signal insulated


Firmware upgrade via DMX cable

Dimmer

Smart color management system(optional)

Electronic dimmer,0-100% linear(16Bit control)


3 dimmer speeds

Housing

4 dimmer curves

High temperature ABS, IP20

Dimmer frequency 1.2K~2.5K adjustable for high speed 4K video cameras




Color Temperature

Ambient Temperature

Color Temperature  1800K-10000K , linear control

Ambient temperature 45°C at maximum



Strobe

Weight

Electronic strobe, 0.3-25 F.P.S.,with built-in pulse strobe

12.8Kg




Accessories


G Clamp 2 Pcs

Beam Angle

XLR Cable 1 Pc With plug and socket

Beam Angle(1/2 peak)θ1/2: 4 °~40°

Safety Cord 1 Pc

Field Angle(1/10 Peak)θ: 7°~60°

User Manual 0 Pc QR Code









【Version:20240221】



Name
Description
Download
Specification
XLED 4019
User manual
PR-8124
