XRLED 1600-W BWSF
Model No.PR-8194
XRLED 1600-W BWSF

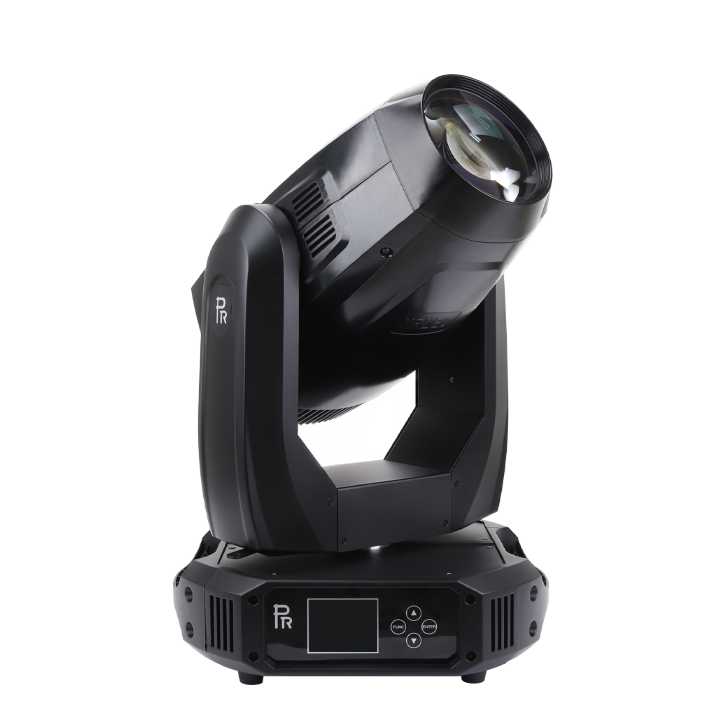

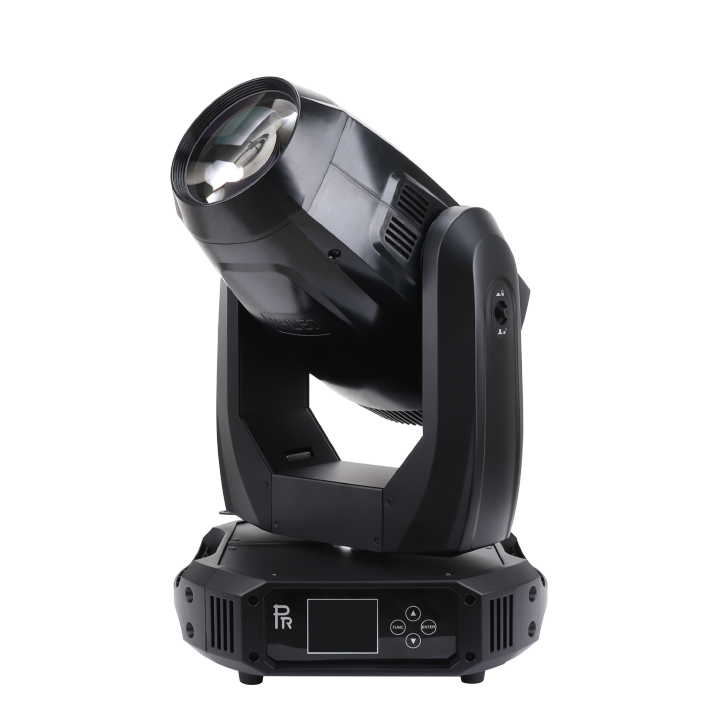

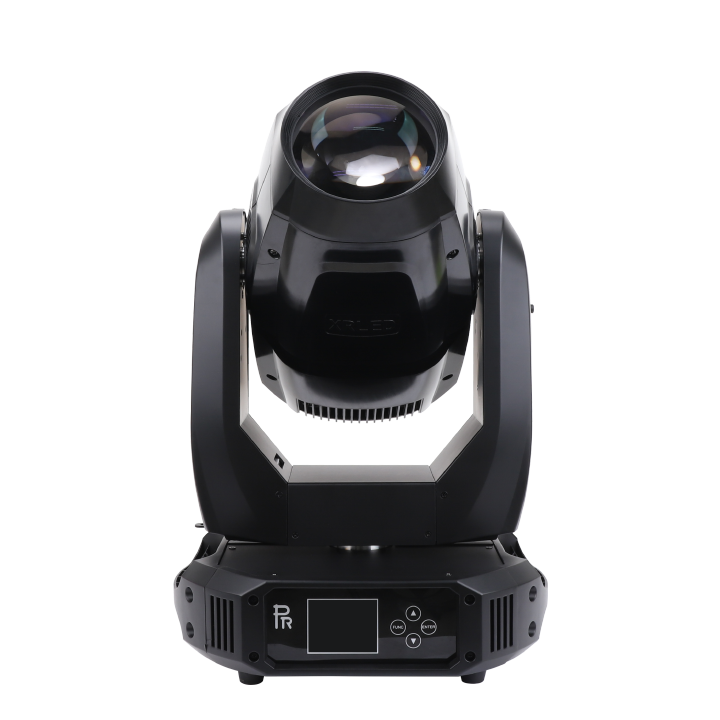

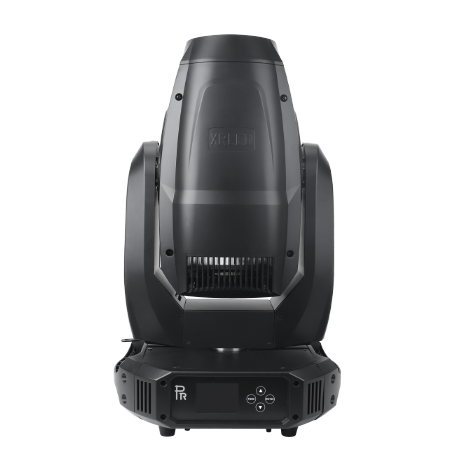

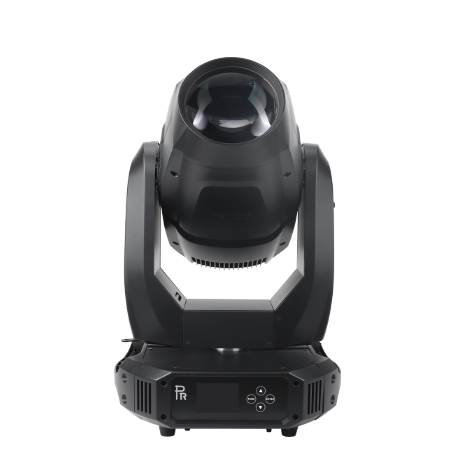

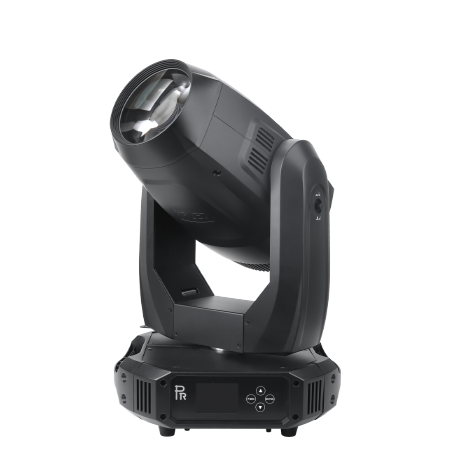

XRLED 1600-W BWSF(Four in One) is a moving head fixture using 700W LED white engine as its light source. It has high-performance brand light source, brand new optical lens with efficacy more than 60%, beam angle(5°-60°), very intensive beam with high CRI(Ra≥96) and very good color rendition. It uses our many innovative technologies like continually rotating framing system, linear color temperature(1800K-6500K), brightness calibration, colors based on standard LEE color chart, auto-focusing, multiple dimmer modes, very quiet running and etc.., realizing more professional and fantastic stage effects. It is for TV studios, theatres, performing stages and other places.
Features
COLORS
FRAMING
GOBO WHEEL
Download

ELECTRIC PARAMETERS
Input voltages : 100V~240V AC,50/60Hz
Input Power :   850W @ 220V
Power factor :    PF〉0.95
Max. Current:  3.9A @ 220V

LIGHT SOURCE  SPECIFICATIONS(Yellow)
Power consumption :  700W, White LED module
Color Temperature :   8000K
Manufacturers Rated Lamp Life : 20000hour
CRI : Ra≥70(Optional Ra≥96,R9≥95)

CTO
Linear CTO system(0-100%, 1800K-6500K)

ANIMATION EFFECT
Bi-directional animation effects at variable speeds

IRIS
5-100% linear with macros

PRISM
1pc, 3-facet circular prism, bi-directional rotation at variable speeds with indexing function

FROST
1 frost filter ,0-100% linear

BEAM ANGLE
5°~60°,linear with 16 bit control

FOCUS
DMX linear with auto focus function

DIMMER
Linear electronic dimmer 0-100% with 16 bit control
3 dimmer speeds
5 dimmer curves
Dimmer frequency(1.2K-25K) good for 4K high speed video camera

STROBE
Electronic strobe 0.3~25 Hz, optional pulse, synchronized or non-synchronized strobe at slow, medium and fast speeds

HEAD MOVEMENT
Pan 540º, Tilt 270º with auto position correction and 16 bit control

Advanced macros
Color temperature macros: optional
2700K,3000K,3500K,4000K,4500K,5000K,5700K
Standard color macros: 89 color options based on standard color chart.

FAN MODE
Standard mode and theater modes.  Theater mode is quiet mode



FIXTURE TYPES
Including moving head light, fixed-focus profile light, zoom profile light
Moving head light with beam angle range(5-60°)
Fixed focus profile light with beam angle options including
 5°,10°,19°,26°,36°,60°
Zoom profile light with beam angle ranges including 5-15°,15-35°,35-60°
(Note: Auto quiet theater mode for fixed focus profile light and zoom profile light)

BRIGHTNESS CALIBRATION FUNCTION
With brightness calibration function to calibrate initial brightness for a single fixture or multiple ones and store brightness values into the fixtures

CRI MODE
Running at high CRI mode via DMX channel to ensure high CRI optical effect.

CONTROL
International standard DMX512 signal and RDM function
40channels in short mode, 46channels in standard mode,59channel in extended mode
Art Net protocol(optional) , sACNprotocol(optional), DMX512 wireless control
Master/Slave mode
Standalone mode
Master Mode

CONTROL INTERFACE
DMX512 ports(5-pin)
Ethernet port RJ45

OTHER FUNCTIONS
Adjustable Pan & Tilt speeds
Pan and Tilt invertible and swappable
Lamp’s and fixture’s hours displayed
Color touch Chinese/English screen, display invertible and touch keys
Intelligently controllable fans
Sensor diagnostic system
Input signal isolated, modular construction for easy maintenance, DMX channel voltages monitoring
Non-touchable magnetic sensor for positioning, signal feedback, absolute position memory, auto-positioning after power-off or DMX signal disrtuption
Firmware upgrade via DMX cable
Optional ethernet port

HOUSING
High temperature ABS, IP20

NET WEIGHT
24.2Kg

AMBIENT TEMPERATURE
Temperature at maximum 45°C









【Version:20250707】


CMY color mixing system with macros
1 Color wheel: 7colors+ Open,
Half color , bi-directional rainbow effect at variable speeds,
Stepping/linear color  changing

1 Framing Module: 4 Framing Blades
Framing Module continual rotation with many graphics of different sizes and shapes
4 Framing blades to make full curtain effect

1 Rotating gobo wheel: 8Rotating Gobos +Open
Bi-directionally rotatable, and shakable at variable speeds

1 fixed gobo wheel(optional):4 fixed Gobos +Open+effect
Bi-directionally rotatable, and shakable at variable speeds
