XLED 4022 RZ
Model No.PR-8541
XLED 4022 RZ

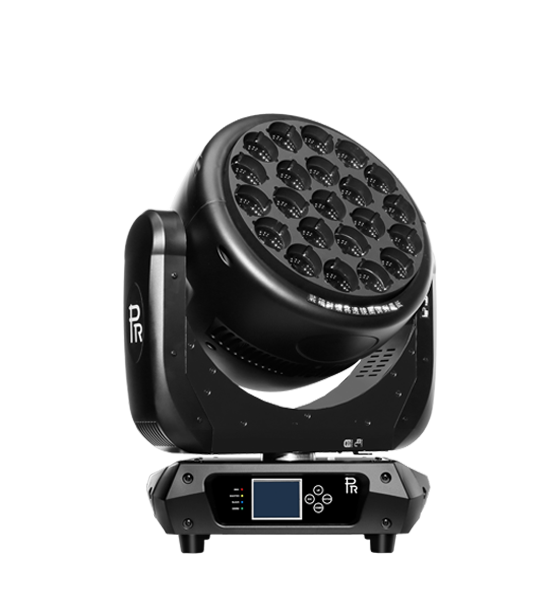

XLED 4022RZ is an extremely bright LED color wash moving head luminaries featuring 22 PCS 40W (4-in-1 RGBW) LEDs. As a washlight, the 5°~60° zoom, even beam and fantastic color range create a true workhorse fixture.
Features
Colors
Download
    • Light Source

      Control

      OSRAM 22x40W LEDs (4-in-1,RGBW), (2700-10000K), 50,000 hrsDMX512, master-slave, and sound activated controllable or auto operation



      Input Voltages

      Channels

      AC100-240V 50/60Hz

      5 Different channel modes: 15channles /28channels /30channels /81channels /104channels




      Power Consumption

      Other Functions

      900W@220V
      Pixel control, front lens panel’s bi-directional continuous rotation, electronic Strobe (slowest 1time per second, fasted 25 times per second)




      Strobe:

      Housing

      Electric strobe 1-25 F.P.SHigh temperature engineering plastic


      IP20

      Dimmer



      0-100% linear dimmingNet Weight


      23.6kg

      Focus


      Linearly focusing



      Effect



      Vortex and kaleidoscope effect






      Light Angle



      Beam angle(1/2 Maximum) : 5°~38°, field angle(1/10 Maximum): 8°~60°



      Head Movement



      Pan 540° and tilt 240°, with auto position correction



  • Color System

    Sophisticated 4 colors RGBW mixed




    Color Temperature


    Linear color temperature adjustment from 2700K-10000K
