JNR BAT PANEL 8965
Model No.JNR-8145A
JNR BAT PANEL 8965

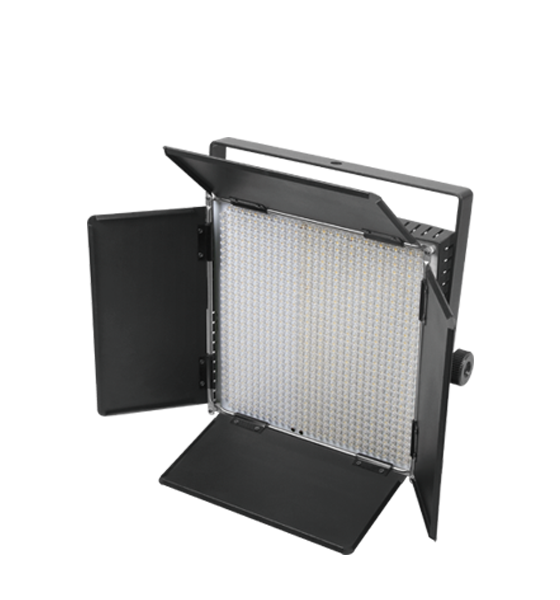

JNR BAT PANEL 8965 with totally 896 PCS 5mm LEDS in one, super lightweight and 3200K~5600K color temperature adjustable, include a rechargeable battery, applicable for large-scale live performances, theater, studio, nightclubs and discos.
Features
Colors
Download
Light Source

Channels

896 PCS 5mm LEDs (cool white + warm white), 50,000 hrs
2/5 DMX channels USITT DMX-512



Input Voltages

Connections

AC90-260V 50/60Hz

3-Pin connectors IN/OUT


3-Pin XLR locking power connector

Power Consumption



54W
Other Functions


4-Button LCD display
Strobe

Superior free noise thermal cooling system
25T/sec high speed shutter/strobe effect with variable speedInclude a rechargeable battery




Dimmer

Housing
0-100% Smooth and precise linear dimmer

Housing made by rugged, die cast aluminum alloy

IP20
CRI



Ra≥80

Net Weight


1.85kg

Light Angle


45°

Accessories


Barn door included
Installation

Tripod stand as optional

Thermally insulated knobs and single aluminum handle for installing
12V DC power adapter included




Control



DMX512, master-slave, and sound activated controllable or auto operation










    • Color System

      Cool White+Warm White


      Color temperatures: 3200K ~ 5600K
