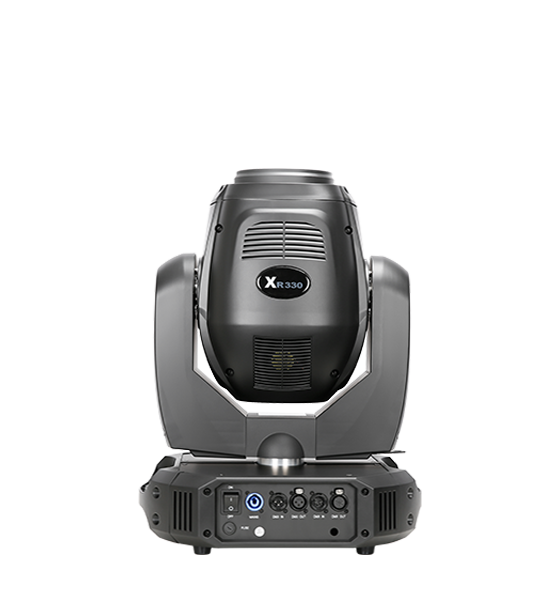

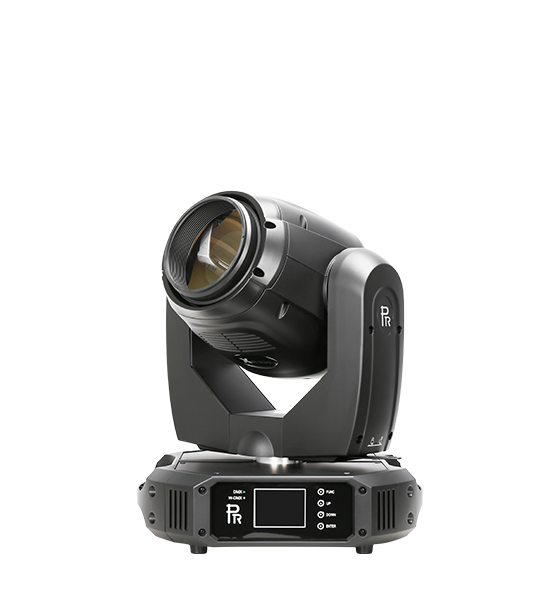

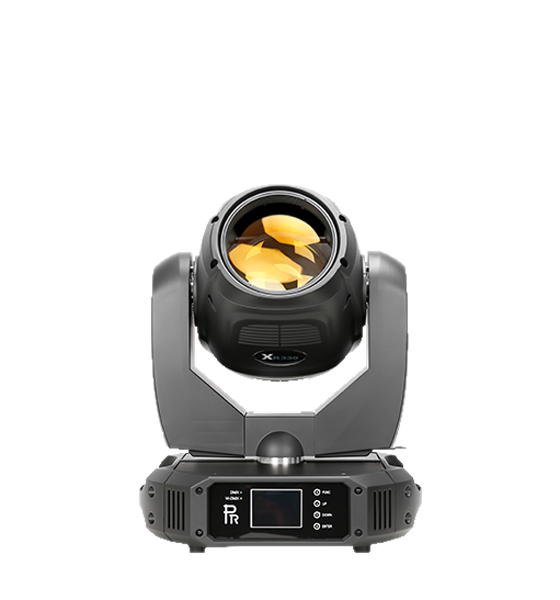

XR 330 Beam II
Model No.PR-2344
XR 330 Beam II
XR 330 Beam Ⅱ is a new launched product, equipped with a SIRIUS HRI 330W lamp. Features include 1 color wheel with 13 colors; 1 fixed gobo wheel with 16 gobos and 1 rotating gobo wheel with 12 gobos; 3 prisms, etc. The fixure is perfect for small and medium installation applications.
Features
Colors
Gobo
Download
Light Source

Channels

OSRAM SIRIUS HRI 330W(8,000K), 1500 hrsShort mode 15 channels, standard mode 19 channels



Input Voltages

Other Functions

100V~240V AC, 50/60Hz

DMX512 wireless receiver, (optional: DMX512 wireless transmitter)




Power Consumption

Housing

430W@220V

High temperature resistant engineering plastics


IP20
Strobe



Double shutter blades, 0.3-20 F.P.S
Net Weight


16kg

Dimmer



0-100% linearly adjustable





Prism



3 Prisms (standard: 8-facet +16-facet + linear prisms), bi-directional rotation + Frost + Open, (optional 3-facet, 16-facet prism or gradient prism)






Focus


DMX linear focus



Light Angle









Head Movement

Pan 540º and tilt 270º with auto position correction and adjustable speed






Control


DMX512, 5 pins(optional 3 pins) intereface



Color Wheel


1 Color Wheel: 12 colors+CTO plus open


Rainbow effect with bi-directional and variable speeds


Stepping/linear color changing



Fixed Gobo



1 Fixed Gobo Wheel: 16 replaceable gobos plus open

Shaking at variable speed and bi-directional scrolling effect





Rotating Gobo



1 Rotating Gobo Wheel: 12 replaceable gobos plus open
Bi-drectionally rotating, index, shaking at variable speed and bi-directional scrolling effect






Name
Description
Download
Specification
XR 330 Beam II Spec
User manual
XR 330 Beam II
Lighting Library
MA2,Avolites
