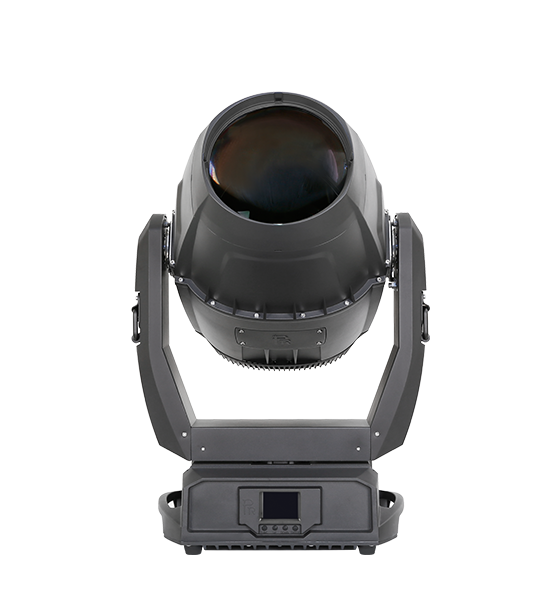

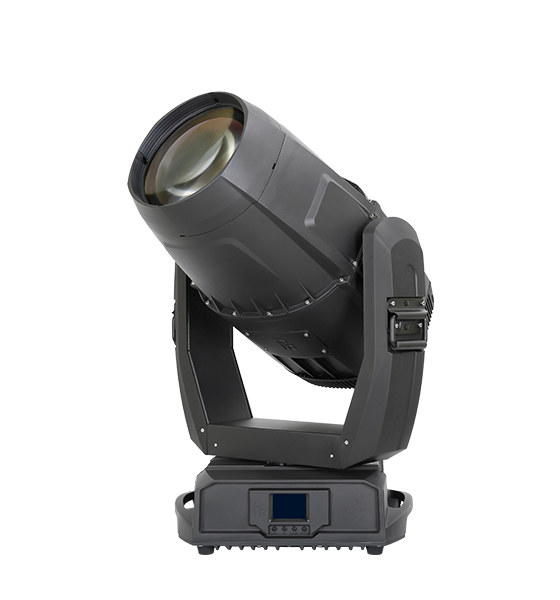

AQUA 580 Beam
Model No.PR-2569S
AQUA 580 Beam
AQUA 580S BEAM is an all weather fixture having high optical efficacy ,low noise and multiple functions with ingress protection up to IP66. Front lens of 230mm produces full and solid beam with luminous flux of 230,000lux at 20 meters and beam angle at 2°. The fixture can project up to 500m like a strong searchlight with excellent in-air visual effects. Fast frost filter makes wash effects; 3 prisms make more fantastic and plenty in-air dynamic effects; a rotating gobo wheel(7 gobos+ open), a static gobo wheel(18gobos+ open) , linear CTO, a color wheel(12 colors+ open), the combination of which can make infinite colors and hues and continually and fast rotating color wheel can produce rainbow effect. It is for dusty, rainy, sunny and other harsh places.
Features
Colors
Gobo
Download
ELECTRIC PARAMETERS
Input voltages 100V~240V AC,50/60Hz
Input Power 800W @ 220V
Power factor: PF〉0.9

LAMP  SPECIFICATIONS
Lamp:PHILIPS  MSD Platinum 500L Flex(550W)
Color Temperature:7800K
Manufacturers Rated Lamp Life:1500hours

PRISM/FROST
3 pcs of prisms which can be overlapped (8 facet circular prism+ 4facet linear prism) (16 facet circular prism+ frsot)  And other optional prisms

FOCUS
DMX linear Focus

DIMMER/STROBE
 0-100% Linearly adjustable/ Double shutter blades, 0.3~25 F.P.S

HEAD MOVEMENT
Pan 540º, Tilt 270º with auto position correction

BEAM ANGLE
Beam angle  2°
CONTROL
DMX512, 5-pin interfaces(Optional 3-pin)
15channels in short mode, 18channels in standard mode , 20channels in extended mode
Self-test mode

OTHER FUNCTIONS
Adjustable Pan & Tilt speeds
Lamp’s and fixture’s hours displayed
Modular Structure for easy maintenance
DMX512 wireless receiever
Optional DMX512 Wireless Transmitter
Optional ArtNet function

HOUSING
Cast Aluminum and high temperature and UV resistant ABS, IP66

NET WEIGHT
38.8 Kg

WORK TEMPERATURE
Maximum ambient temperature: 45°C
For a waterproof fixture: if the ambient temperature is minus 20 Celsius, strike the lamp to pre-heat for 10minutes and reset it again.




  【Version:20250804】

1 Color wheel: 12colors+ Open,
rainbow effect with bi-directional and variable speeds,
Stepping/linear color changing

1 Fixed gobo wheel: 18 gobos +Open
Bi-directionally rotatable, and shakable at variable speeds




Name
Description
Download
Specification
PR-2569S Version:20250804
User manual
PR-2569S Version:20250804
