JUNIOR
JNR BAR 7x30
Model No.JNR-8021

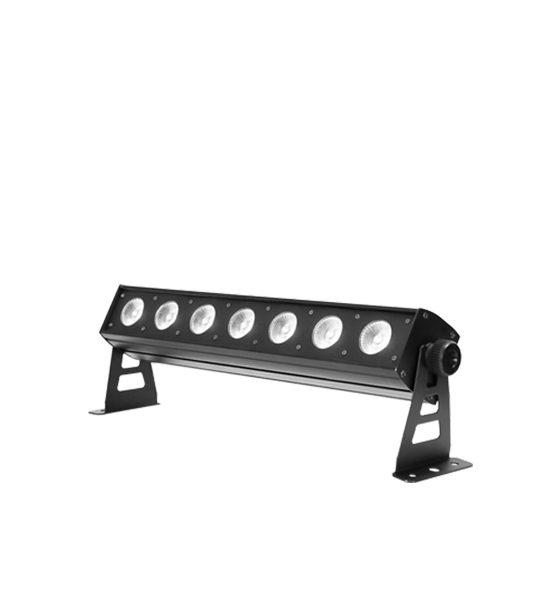

JNR BAR 7x30
The JNR BAR 7x30 adopts 7 PCS 30W 3-in-1 LEDs (RGB) which features high brightness and stability. It’ s available independently controlled and linkable with each other for operation.
Features
Colors
Download
Light Source

Channels

7x30W LEDs (3-in-1 RGB), 50,000 hrs2/5/8/21/23 DMX channels



Input Voltages

Other Functions

AC90-260V 50/60Hz

Stunning light output with high intensity and high color rendering index




Power Consumption

Housing

135W

Die-cast aluminum alloy, compact


IP20

Strobe



25T/s high speed LED shutter/strobe effect with variable speed
Net Weight


3.2kg

Dimmer



0-100% smooth linear electronic dimmer






Effect



Dynamic macro effect with variable speed




Light Angle



25°





Head Movement



Manual controllable for tilt angle adjustment




Control



DMX512, master-slave and sound activated controllable or auto operation







  • Color System

    16.7 millions of colors by mixing


    12 Internal color running programs, available for strobe effect together


    13 DIY internal color running programs with background, foreground colors changeable,available for strobe effect together

















Name
Description
Download
Specification
JNR-8021
User manual
JNR-8021
Lighting Library
MA2,Avolites
