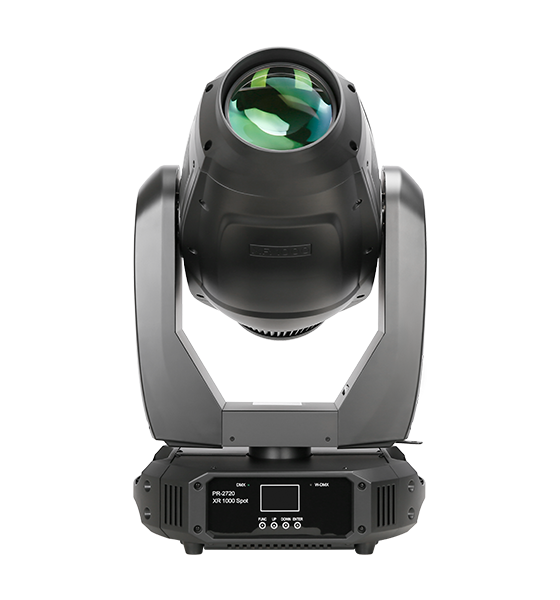

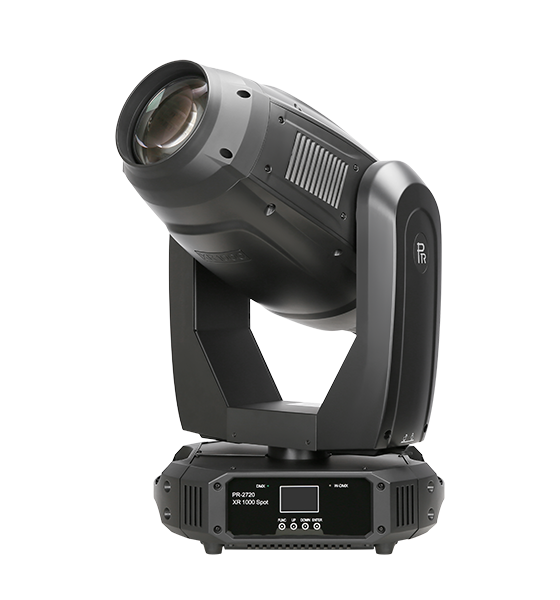

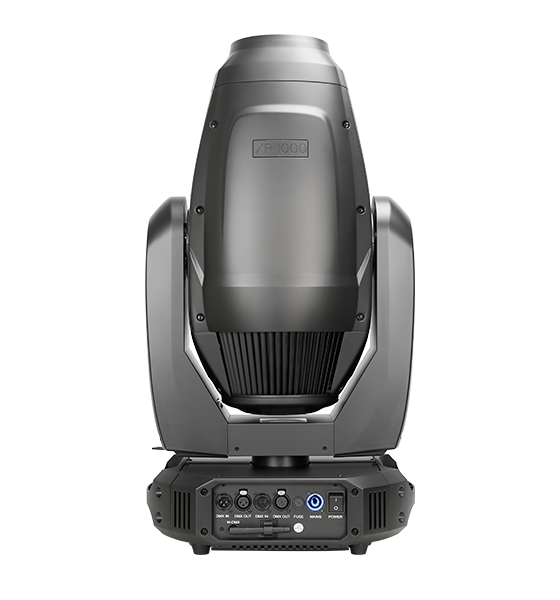

XR 1000 Spot
Model No.PR-2720
XR 1000 Spot
Equipped with the OSRAM latest 1000W lamp, XR 1000 Spot produces an intense sparkling light brighter even than traditional 1200W lamp. It features wide zoom range from 9°~60° as well as rich color and gobo effects and animation effect.
Features
Colors
Gobo
Download
Light Source

Focus/Zoom

OSRAM HTI 1000W/PS Lok-it!(5,800K, PGJX36 socket), 750 hrs
DMX linear focus/zoom

Or PHILIPS MSR GoldTM 1000 MiniFastFit(6,000K, PGJX36 socket), 900 hrs




Light Angle

Input Voltages

9°~60°
200V~240V AC, 50/60Hz (optional: 120-240V AC,50/60Hz)




Head Movement

Power Consumption

Pan 540°, tilt 270° with auto position correction and adjustable speed
1200W@220V (1266W@120V)





Control

Strobe

DMX512, 5 pins(optional 3 pins) intereface
Double shutter blades, 0.3-25 F.P.S





Channels

Dimmer

Short mode 23 channels, standard mode 28 channels and extended mode 35 channels
0-100% linearly adjustable





Other Functions

Prism

DMX512 wireless receiver, (optional: DMX512 wireless transmitter)
1x3-facet prism, bi-drectionally rotating at variable speed, indexable




Housing

Effect

Composite plastic

1 Interchangeable graphic effect wheel, bi-directional rotation with variable speeds

IP20






Frost

Net Weight

1 Frost filter, linear frost effect
31.5kg





Iris



5-100% linearly adjustable with macros


CMY



CMY linear mixing system with macros





Color Wheel



1 Color Wheel: 7 colors+ Open

Half color effect, rainbow effect with bi-directional and variable speeds


Stepping/linear color changing






Color Temperature



0-100% linear color temperature correction



Fixed Gobo



1 Fixed Gobo Wheel: 7 replaceable gobos plus open

Shaking at variable speed and bi-directional scrolling effect





Rotating Gobo



1 Rotating Gobo Wheel: 7 replaceable gobos plus open, glass and metal gobos can be fixed

Bi-drectionally rotating, index, shaking at variable speed and bi-directional scrolling effect






Name
Description
Download
Specification
XR 1000 Spot Spec
User manual
XR 1000 Spot
Certificates
XR 1000 Spot CE
DWG
PR-2720 DWG
Lighting Library
MA2,Avolites
