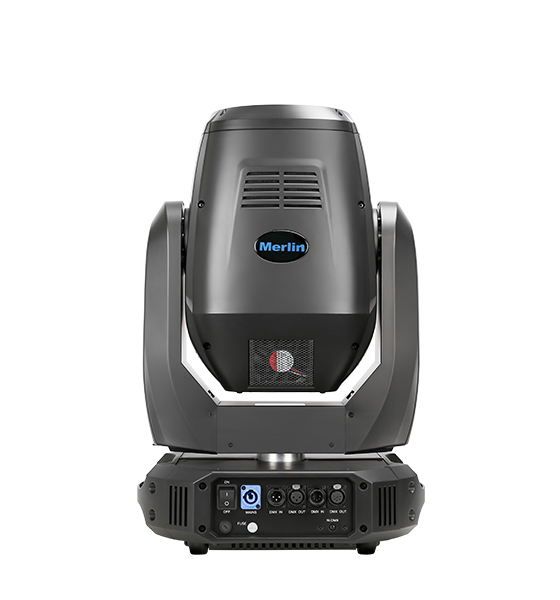

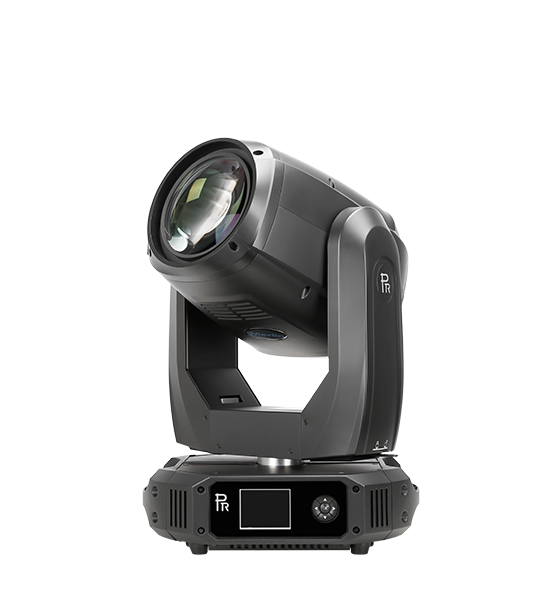

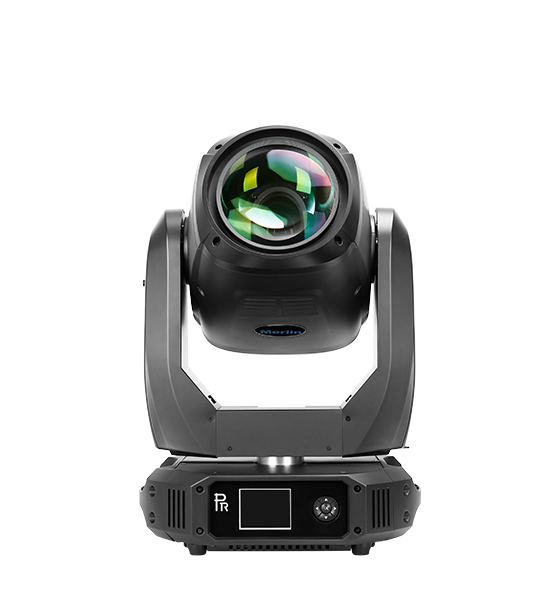

MERLIN
Model No.PR-2473
MERLIN

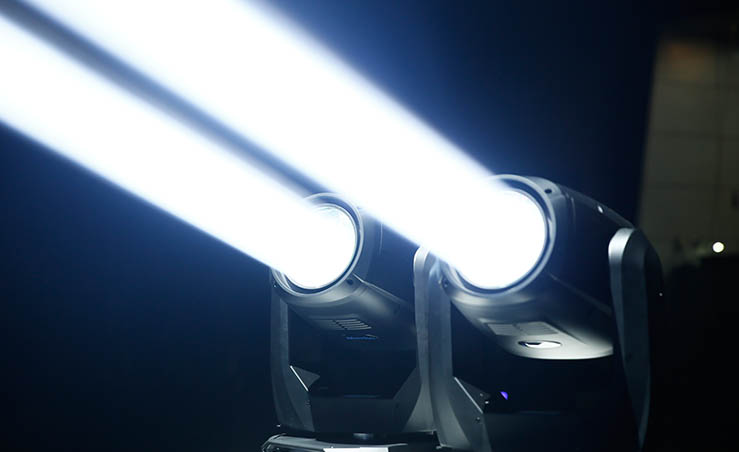

MERLIN integrates three features(Spot, Wash and Beam) in a single unit. This fixture has adopted PR patented technology, combines advanced 480W lamp technology with superb optical system.
Features
Colors
Gobo
Download
Light Source

Focus/Zoom

USHIO PR 480(480W), (6,800K),1500 hrsMotorized linear focus and zoom



Input Voltages

Light Angle

100V~240V AC, 50/60Hz

Beam mode: 0°~2.9°, Spot mode: 2.9°~60°, Wash mode: 10°~60°




Power Consumption

Head Movement

690W@220V

Pan 540º and tilt 270º with auto position correction and adjustable speed




Strobe

Control

Double shutter blades, 0.3-25 F.P.S

DMX512, 5 pins(optional 3 pins) intereface




Dimmer

Channels

0-100% linearly adjustable

Short mode 22 channels, standard mode 30 channels and extended mode 34 channels




CTO

Other Functions

0-100% linear CTO system

DMX512 wireless receiver, (optional: DMX512 wireless transmitter)


Prism

Housing

3 Prisms(standard: 2x8-facet circular prisms and 1x4-facet linear prism) +frost plus open, bi-directional rotation with variable speeds (optional: 3-facet, 16- facet circular/linear/gradient prisms)
High temperature ABS

IP20




Net Weight

Effect

25kg

1 Graphic effect wheel, bi-directional rotation with variable speeds, overlap with fixed gobos and rotating gobos for some special effects






Frost



1 Frost filter, linear frost effect




CMY


CMY linear mixing system with macros






Color Wheel


1 Color Wheel: 12 colors+ open


Rainbow effect with bi-directional and variable speeds


Stepping/linear color changing



Fixed Gobo



1 Fixed Gobo Wheel: 18 replaceable gobos plus open

Shaking at variable speed and bi-directional scrolling effect





Rotating Gobo



1 Rotating Gobo Wheel: 7 replaceable gobos plus open
Bi-drectionally rotating, index, shaking at variable speed and bi-directional scrolling effect
